D89110-0131HK-3365/10-D-3

Active

3M (TC)

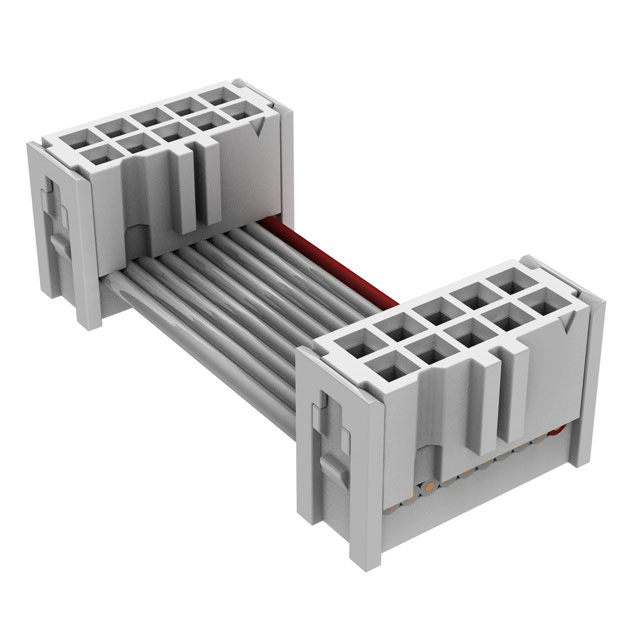

CABLE 10POS SOCKET TO SOCKET 3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

D89110-0131HK-3365/10-D-3

Active

3M (TC)

CABLE 10POS SOCKET TO SOCKET 3"

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89110-0131HK-3365/10-D-3

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Length	3 "
Length	76.2 mm
Length	0.25 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

D89110 Series

Part	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Length	Length	Length	Cable Termination	Wire Type	Mounting Type	Row Spacing [x]	Row Spacing	Features	Color	Pitch [x]	Pitch [x]	Contact Type	Length
3M (TC) D89110-0131HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0001HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0131HK-3365/10-D-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Socket	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0001HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0101HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0131HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0101HK-3365/10-S-6	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	6 "	152.4 mm		IDC										0.5 '
3M (TC) D89110-0031HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0031HK-3365/10-D-6	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Socket	15 µin	0.38 µm	10	0.05 "	1.27 mm	6 "	152.4 mm		IDC										0.5 '
3M (TC) D89110-0031HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.43
		10	$ 4.92
		25	$ 4.44
		50	$ 4.11
		100	$ 3.82
		250	$ 3.47
		500	$ 3.23
		1000	$ 3.02
		2500	$ 2.77

Description

General part information

D89110 Series

10 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00")

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

3365 Series Datasheet

Datasheet
