D89110-0001HK

Active

3M (TC)

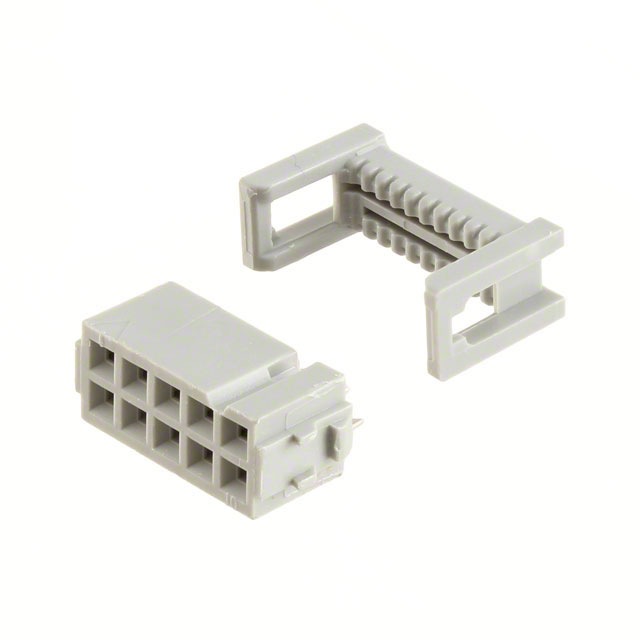

CONN RCPT 10P IDC 26-28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

D89110-0001HK

Active

3M (TC)

CONN RCPT 10P IDC 26-28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89110-0001HK

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

D89110 Series

Part	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Cable	Pitch - Cable	Length	Length	Length	Cable Termination	Wire Type	Mounting Type	Row Spacing [x]	Row Spacing	Features	Color	Pitch [x]	Pitch [x]	Contact Type	Length
3M (TC) D89110-0131HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0001HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0131HK-3365/10-D-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Socket	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0001HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC
3M (TC) D89110-0101HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0131HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0101HK-3365/10-S-6	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	6 "	152.4 mm		IDC										0.5 '
3M (TC) D89110-0031HK		2			Gold	Receptacle	15 µin	0.38 µm	10						IDC	Ribbon Cable	Free Hanging (In-Line)	0.1 in	2.54 mm	Feed Through	Gray	2.54 mm	0.1 in	Female Socket
3M (TC) D89110-0031HK-3365/10-D-6	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Socket	15 µin	0.38 µm	10	0.05 "	1.27 mm	6 "	152.4 mm		IDC										0.5 '
3M (TC) D89110-0031HK-3365/10-S-3	Unshielded	2	0.1 in	2.54 mm	Gold	Socket to Cable	15 µin	0.38 µm	10	0.05 "	1.27 mm	3 "	76.2 mm	0.25 ft	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.32
		10	$ 1.12
		25	$ 1.05
		50	$ 1.00
		100	$ 0.95
		300	$ 0.88
		500	$ 0.85
		1000	$ 0.81
		2500	$ 0.76

Description

General part information

D89110 Series

10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
