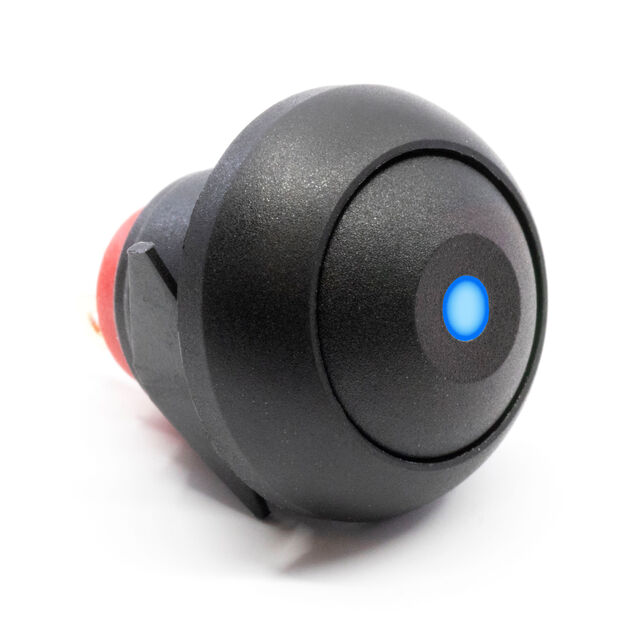

RP8100B1M1CEBLKBLKBLU

Active

E-Switch

SWITCH PB SPST-NO 0.125A 125V

Deep-Dive with AI

Search across all available documentation for this part.

RP8100B1M1CEBLKBLKBLU

Active

E-Switch

SWITCH PB SPST-NO 0.125A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP8100B1M1CEBLKBLKBLU

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA, 100 mA
Electrical Life	500000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

RP8100 Series

Part	Mounting Type	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Type	Illumination Voltage (Nominal)	Voltage Rating - DC	Circuit	Actuator Type	Ingress Protection	Termination Style	Actuator Marking	Color - Actuator/Cap	Electrical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Current Rating (Amps)
E-Switch RP8100B1M1CEBLKBLKYEL	Panel Mount Snap-In	LED Yellow	13.6 mm	Illuminated Standard	2.1 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B1M1CEBLKBLKRED	Panel Mount Snap-In	LED Red	13.6 mm	Illuminated Standard	2.1 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKBLKNIL	Panel Mount Front		13.6 mm	Standard		50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B1M1CEBLKBLKGRN	Panel Mount Snap-In	Green LED	13.6 mm	Illuminated Standard	2 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKWHTYEL	Panel Mount Front	LED Yellow	13.6 mm	Illuminated Standard	2.1 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	White	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKBLKGRN	Panel Mount Front	Green LED	13.6 mm	Illuminated Standard	2 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKBLKRED	Panel Mount Front	LED Red	13.6 mm	Illuminated Standard	2.1 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKWHTGRN	Panel Mount Front	Green LED	13.6 mm	Illuminated Standard	2 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	White	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B2M1CEBLKGRNNIL	Panel Mount Front		13.6 mm	Standard		50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Green	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA
E-Switch RP8100B1M1CEBLKBLKBLU	Panel Mount Snap-In	Blue LED	13.6 mm	Illuminated Standard	2.8 VDC	50 VDC	SPST-NO	Button Round	IP67 - Dust Tight Waterproof	Solder Lug	No Marking	Black	500000 Cycles	125 V	-30 ░C	85 °C	Off-Mom	100 mA 125 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.65
		50	$ 4.60
		100	$ 4.38
		1000	$ 3.62

Description

General part information

RP8100 Series

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
