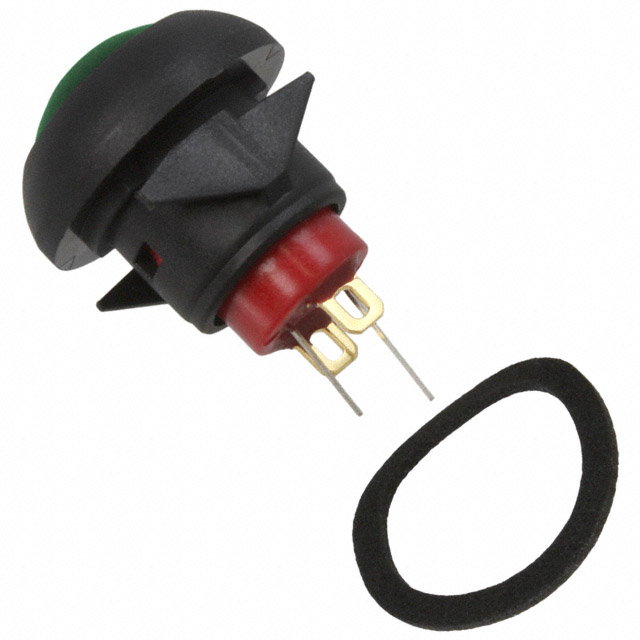

RP8100B1M1CEBLKBLKGRN
ActiveE-Switch
SWITCH PB SPST-NO 0.125A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RP8100B1M1CEBLKBLKGRN
ActiveE-Switch
SWITCH PB SPST-NO 0.125A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP8100B1M1CEBLKBLKGRN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 125 mA, 100 mA |
| Electrical Life | 500000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 13.6 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 50 VDC |
RP8100 Series
| Part | Mounting Type | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Type | Illumination Voltage (Nominal) | Voltage Rating - DC | Circuit | Actuator Type | Ingress Protection | Termination Style | Actuator Marking | Color - Actuator/Cap | Electrical Life | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Panel Mount Snap-In | LED Yellow | 13.6 mm | Illuminated Standard | 2.1 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Snap-In | LED Red | 13.6 mm | Illuminated Standard | 2.1 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | 13.6 mm | Standard | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA | ||
E-Switch | Panel Mount Snap-In | Green LED | 13.6 mm | Illuminated Standard | 2 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | LED Yellow | 13.6 mm | Illuminated Standard | 2.1 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | White | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | Green LED | 13.6 mm | Illuminated Standard | 2 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | LED Red | 13.6 mm | Illuminated Standard | 2.1 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | Green LED | 13.6 mm | Illuminated Standard | 2 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | White | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
E-Switch | Panel Mount Front | 13.6 mm | Standard | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Green | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA | ||
E-Switch | Panel Mount Snap-In | Blue LED | 13.6 mm | Illuminated Standard | 2.8 VDC | 50 VDC | SPST-NO | Button Round | IP67 - Dust Tight Waterproof | Solder Lug | No Marking | Black | 500000 Cycles | 125 V | -30 ░C | 85 °C | Off-Mom | 100 mA 125 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.37 | |
| 50 | $ 4.37 | |||
| 100 | $ 4.16 | |||
| 1000 | $ 3.44 | |||
Description
General part information
RP8100 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
