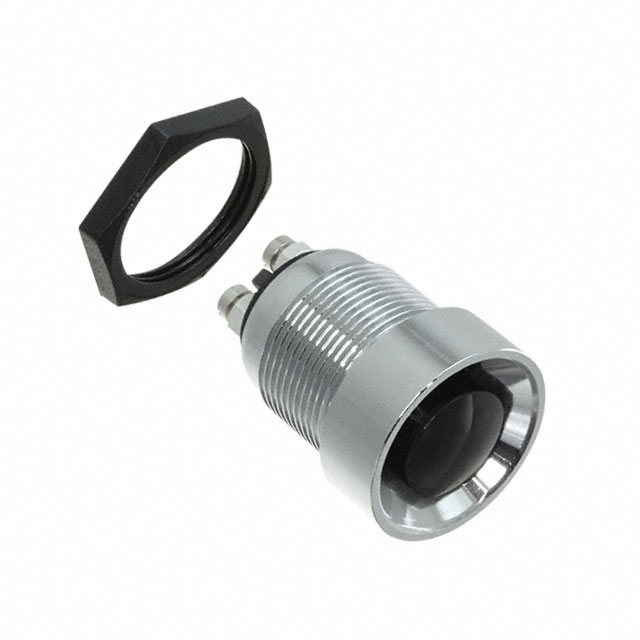

MP0012/1

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 1A 110V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 1A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	MP0012/1

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A, 1 A
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	12 V

Part	Mounting Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Switch Function	Voltage Rating - DC	Circuit
BULGIN LIMITED MP0012/1	Panel Mount Front	Black	85 °C	-20 C	Button Flush Round	Standard	No Marking	19.2 mm	110 V	1 A 2 A	Screw Terminal	Off-Mom	12 V	SPST-NO
BULGIN LIMITED MP0012/1/RD	Panel Mount Front	Red	85 °C	-20 C	Button Flush Round	Standard	No Marking	19.2 mm	110 V	1 A 2 A	Screw Terminal	Off-Mom	12 V	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
