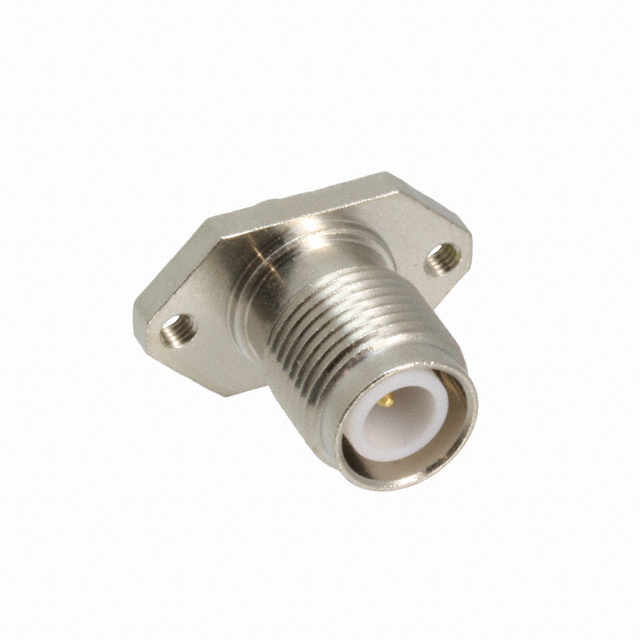

031-6101

Active

AMPHENOL RF

CONN ADAPT AMC JACK-RP-TNC JACK

Deep-Dive with AI

Search across all available documentation for this part.

031-6101

Active

AMPHENOL RF

CONN ADAPT AMC JACK-RP-TNC JACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.20
		10	$ 13.48
		25	$ 12.96
		50	$ 12.44
		100	$ 11.75
		300	$ 10.71
		500	$ 10.02
		1000	$ 9.19

Description

General part information

031-61 Series

Adapter Coaxial Connector U.FL (UMCC) Jack, Male Pin To RP-TNC Jack, Male Pin 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6101	031-61 Series

Adapter Series	RP-TNC to U.FL (UMCC), AMC	RP-TNC to U.FL (UMCC), AMC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	Semi Rigid, RG-405, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174, Belden 9258, RG-8, 213, 214, LMR-240, LMR-600
Cable Group	-	0.085 in
Cable Group	-	0.086 in
Center Contact Material	Brass	Phosphor Bronze, Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Male to Male	Male to Male
Connector Style	-	TNC, BNC, RP-TNC
Connector Type	-	Female Socket, Jack, Male Pin, Plug
Contact Termination	-	Solder, Crimp
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	U.FL (UMCC) Jack, Male Pin	U.FL (UMCC) Jack, Male Pin
Convert To (Adapter End)	RP-TNC Jack, Male Pin	RP-TNC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On, Bayonet Lock
Frequency - Max [Max]	6000 MHz	1 - 6000 GHz
Housing Color	-	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	Nut, Contact, Gasket, Lockwasher, Connector, Insulator, 1 Connector, 1 Ferrule, 1 End Cap, 1 Lockwasher, 1 Contact, 1 Nut, 1 Insulator, 1 Gasket
Ingress Protection	-	IP67 - Dust Tight, Waterproof, Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	30	30 - 500
Mounting Feature	Flange	Bulkhead - Front Side Nut, Flange
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	-	1
Operating Temperature [Max]	90 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 ░C
Shield Termination	-	Solder, Crimp, Clamp
Style	Straight	Straight
Voltage Rating	-	350 - 500 V

031-61 Series

TNC STRAIGHT SOLDER JACK FOR .08

Part	Includes	Impedance	Center Contact Material	Center Contact Plating	Connector Type	Housing Color	Dielectric Material	Cable Group	Cable Group [Min]	Cable Group [Max]	Mounting Feature	Mating Cycles	Contact Termination	Body Material	Body Finish	Frequency - Max [Max]	Number of Ports	Connector Style	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Ingress Protection	Style	Conversion Type	Adapter Series	Adapter Type	Convert From (Adapter End)	Fastening Type	Convert To (Adapter End)	Center Gender	Insertion Loss
AMPHENOL RF 031-6179	Connector, Contact, Gasket, Insulator, Lockwasher, Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	RG-405, Semi Rigid	0.085 in	0.086 in	Bulkhead - Front Side Nut	500	Solder	Brass	Nickel	11 GHz	1	TNC	Solder	-65 ░C	165 °C
AMPHENOL RF 031-6157	1 Connector, 1 End Cap, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58				500	Solder	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line), Right Angle
AMPHENOL RF 031-6111	1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174			Bulkhead - Front Side Nut	500	Crimp, Solder	Brass	Nickel	3 GHz	1	TNC	Crimp	-40 °C	85 °C		500 V	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6180	1 Connector, 1 Contact, 1 Insulator, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)				Flange	500	Solder	Brass	Nickel	11 GHz	1	TNC	Solder	-65 ░C	165 °C
AMPHENOL RF 031-6166	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58			Bulkhead - Front Side Nut	500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C		500 V	Weatherproof
AMPHENOL RF 031-6140	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	213, 214, Belden 9258, LMR-240, RG-8				500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line)	500 V
AMPHENOL RF 031-6141	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	LMR-600				500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line)	500 V
AMPHENOL RF 031-6101		50 Ohms	Brass	Gold			Polytetrafluoroethylene (PTFE)				Flange	30		Brass	Nickel	6000 MHz				-40 °C	90 °C				Straight	Between Series	RP-TNC to U.FL (UMCC), AMC	Jack to Jack	U.FL (UMCC) Jack, Male Pin	Snap-On, Threaded	Male Pin, RP-TNC Jack	Male to Male
AMPHENOL RF 031-6116		50 Ohms	Beryllium Copper, Brass	Gold	Female Socket, Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)					500	Solder	Brass	Nickel	1 GHz	1	BNC	Clamp	-65 ░C	165 °C	Free Hanging (In-Line)	350 V							Bayonet Lock			0.2 dB
AMPHENOL RF 031-6110	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Phosphor Bronze	Gold	Jack, Male Pin	Silver	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174			Bulkhead - Front Side Nut	500	Crimp, Solder	Brass	Nickel	3 GHz	1	RP-TNC	Crimp	-40 °C	85 °C		500 V	IP67 - Dust Tight, Waterproof
