031-6180

Active

AMPHENOL RF

TNC STRAIGHT SOLDER JACK FOR .14

Deep-Dive with AI

Search across all available documentation for this part.

031-6180

Active

AMPHENOL RF

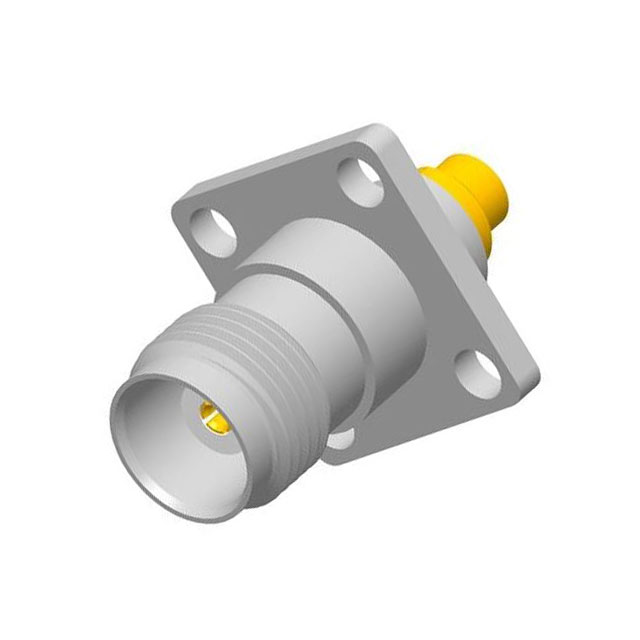

TNC STRAIGHT SOLDER JACK FOR .14

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

031-61 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6180	031-61 Series

Adapter Series	-	RP-TNC to U.FL (UMCC), AMC
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	Semi Rigid, RG-405, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174, Belden 9258, RG-8, 213, 214, LMR-240, LMR-600
Cable Group	-	0.085 in
Cable Group	-	0.086 in
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Connector Style	TNC	TNC, BNC, RP-TNC
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Conversion Type	-	Between Series
Convert From (Adapter End)	-	U.FL (UMCC) Jack, Male Pin
Convert To (Adapter End)	-	RP-TNC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Threaded, Snap-On, Bayonet Lock
Frequency - Max [Max]	11 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Insulator, 1 Contact	Nut, Contact, Gasket, Lockwasher, Connector, Insulator, 1 Connector, 1 Ferrule, 1 End Cap, 1 Lockwasher, 1 Contact, 1 Nut, 1 Insulator, 1 Gasket
Ingress Protection	-	IP67 - Dust Tight, Waterproof, Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	30 - 500
Mounting Feature	Flange	Bulkhead - Front Side Nut, Flange
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Solder	Solder, Crimp, Clamp
Style	-	Straight
Voltage Rating	-	350 - 500 V

031-61 Series

TNC STRAIGHT SOLDER JACK FOR .08

Part	Includes	Impedance	Center Contact Material	Center Contact Plating	Connector Type	Housing Color	Dielectric Material	Cable Group	Cable Group [Min]	Cable Group [Max]	Mounting Feature	Mating Cycles	Contact Termination	Body Material	Body Finish	Frequency - Max [Max]	Number of Ports	Connector Style	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Ingress Protection	Style	Conversion Type	Adapter Series	Adapter Type	Convert From (Adapter End)	Fastening Type	Convert To (Adapter End)	Center Gender	Insertion Loss
AMPHENOL RF 031-6179	Connector, Contact, Gasket, Insulator, Lockwasher, Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	RG-405, Semi Rigid	0.085 in	0.086 in	Bulkhead - Front Side Nut	500	Solder	Brass	Nickel	11 GHz	1	TNC	Solder	-65 ░C	165 °C
AMPHENOL RF 031-6157	1 Connector, 1 End Cap, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58				500	Solder	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line), Right Angle
AMPHENOL RF 031-6111	1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174			Bulkhead - Front Side Nut	500	Crimp, Solder	Brass	Nickel	3 GHz	1	TNC	Crimp	-40 °C	85 °C		500 V	IP67 - Dust Tight, Waterproof
AMPHENOL RF 031-6180	1 Connector, 1 Contact, 1 Insulator, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)				Flange	500	Solder	Brass	Nickel	11 GHz	1	TNC	Solder	-65 ░C	165 °C
AMPHENOL RF 031-6166	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	50 Ohms	Phosphor Bronze	Gold	Female Socket, Jack	Silver	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58			Bulkhead - Front Side Nut	500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C		500 V	Weatherproof
AMPHENOL RF 031-6140	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	213, 214, Belden 9258, LMR-240, RG-8				500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line)	500 V
AMPHENOL RF 031-6141	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Brass	Gold	Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)	LMR-600				500	Crimp	Brass	Nickel	11 GHz	1	TNC	Crimp	-65 ░C	165 °C	Free Hanging (In-Line)	500 V
AMPHENOL RF 031-6101		50 Ohms	Brass	Gold			Polytetrafluoroethylene (PTFE)				Flange	30		Brass	Nickel	6000 MHz				-40 °C	90 °C				Straight	Between Series	RP-TNC to U.FL (UMCC), AMC	Jack to Jack	U.FL (UMCC) Jack, Male Pin	Snap-On, Threaded	Male Pin, RP-TNC Jack	Male to Male
AMPHENOL RF 031-6116		50 Ohms	Beryllium Copper, Brass	Gold	Female Socket, Male Pin, Plug	Silver	Polytetrafluoroethylene (PTFE)					500	Solder	Brass	Nickel	1 GHz	1	BNC	Clamp	-65 ░C	165 °C	Free Hanging (In-Line)	350 V							Bayonet Lock			0.2 dB
AMPHENOL RF 031-6110	1 Connector, 1 Contact, 1 Ferrule	50 Ohms	Phosphor Bronze	Gold	Jack, Male Pin	Silver	Polytetrafluoroethylene (PTFE)	188, 188A, 316, LMR-100, M17/119-RG174, RG-174			Bulkhead - Front Side Nut	500	Crimp, Solder	Brass	Nickel	3 GHz	1	RP-TNC	Crimp	-40 °C	85 °C		500 V	IP67 - Dust Tight, Waterproof
