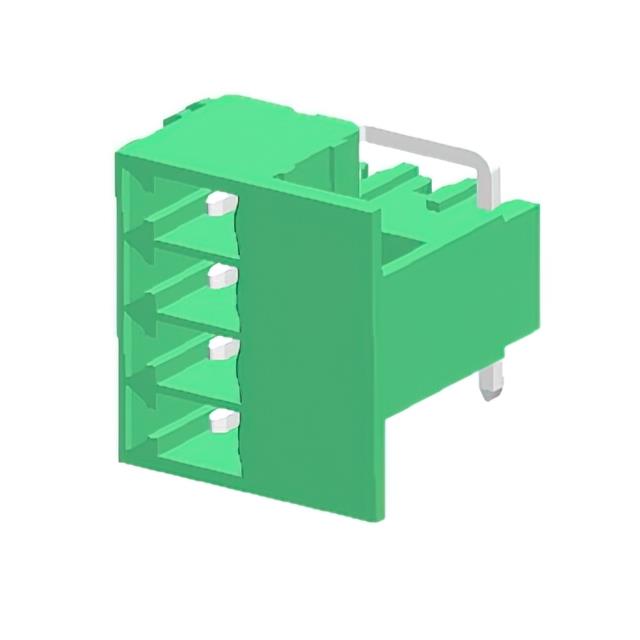

EU0410500000G

Active

AMPHENOL ANYTEK

EU 3.5 - 4P BRIGHT TIN PLATED TE

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

EU 3.5 - 4P BRIGHT TIN PLATED TE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EU0410500000G	EU041 Series

Color	-	Green
Contact Material	-	Copper
Contact Mating Finish	-	Tin
Contact Tail Length	-	0.118 in
Contact Tail Length	-	3 mm
Current - UL	-	10 A
Header Orientation	-	90°, Right Angle
Housing Material	-	Thermoplastic
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Through Hole
null		-
Number of Levels	-	1
Number of Positions	-	4
Operating Temperature	-	-40 °C
Operating Temperature	-	115 °C
Pitch	-	3.5 mm
Pitch	-	0.138 in
Positions Per Level	-	4
Termination Style	-	Solder
Type	-	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	-	300 V

EU 3.5 - 4P BRIGHT TIN PLATED TE

Part	Header Orientation	Termination Style	Contact Tail Length	Contact Tail Length	Color	Number of Levels	Contact Mating Finish	Current - UL	Voltage - UL	Mounting Type	Positions Per Level	Housing Material	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Type	Pitch [x]	Pitch [x]	Material Flammability Rating
AMPHENOL ANYTEK EU0410510000G	90°, Right Angle	Solder	0.118 in	3 mm	Green	1	Tin	10 A	300 V	Through Hole	4	Thermoplastic	Copper	4	-40 °C	115 °C	Header, Male Pins, Shrouded (2 Side)	3.5 mm	0.138 in	UL94 V-0
AMPHENOL ANYTEK EU0410500000G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Terminal Block
