EU0410510000G

Active

AMPHENOL ANYTEK

EU 3.5 - 4P BRIGHT TIN PLATED TE

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

EU 3.5 - 4P BRIGHT TIN PLATED TE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

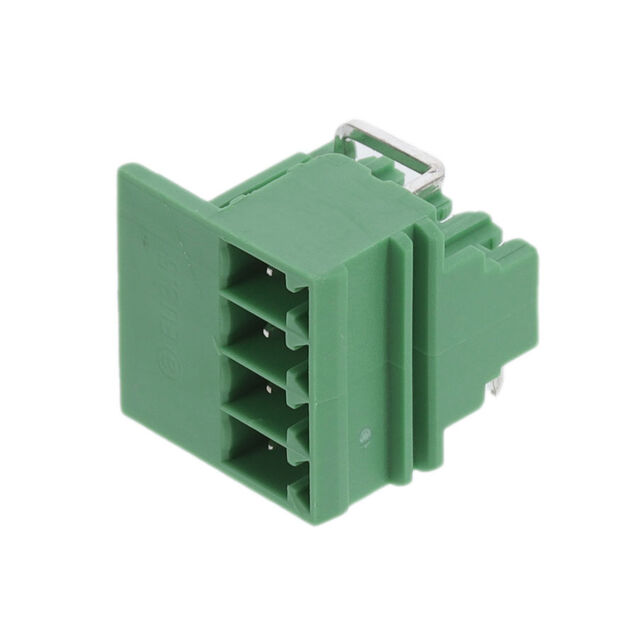

4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Technical documentation and resources

Specification	EU0410510000G	EU041 Series

	-	-
Color	Green	Green
Contact Material	Copper	Copper
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.118 in	0.118 in
Contact Tail Length	3 mm	3 mm
Current - UL	10 A	10 A
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	4	4
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (2 Side)	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V	300 V

Part	Header Orientation	Termination Style	Contact Tail Length	Contact Tail Length	Color	Number of Levels	Contact Mating Finish	Current - UL	Voltage - UL	Mounting Type	Positions Per Level	Housing Material	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Type	Pitch [x]	Pitch [x]	Material Flammability Rating
AMPHENOL ANYTEK EU0410510000G	90°, Right Angle	Solder	0.118 in	3 mm	Green	1	Tin	10 A	300 V	Through Hole	4	Thermoplastic	Copper	4	-40 °C	115 °C	Header, Male Pins, Shrouded (2 Side)	3.5 mm	0.138 in	UL94 V-0
