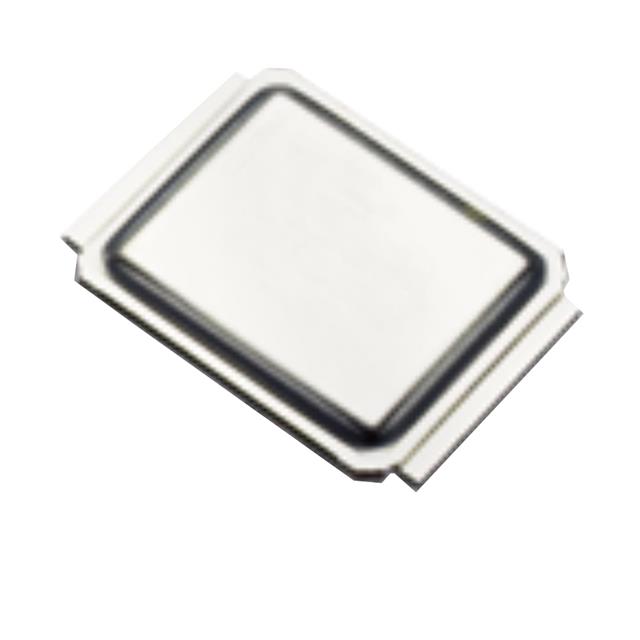

IRL7486MTRPBF

Active

Infineon Technologies

POWER MOSFET, N CHANNEL, 40 V, 209 A, 0.00125 OHM, DIRECTFET ME, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsApplication Note EN Datasheet

IRL7486MTRPBF

Active

Infineon Technologies

POWER MOSFET, N CHANNEL, 40 V, 209 A, 0.00125 OHM, DIRECTFET ME, SURFACE MOUNT

Deep-Dive with AI

DocumentsApplication Note EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRL7486MTRPBF

Current - Continuous Drain (Id) @ 25°C	209 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	4.5 V, 111 nC
Input Capacitance (Ciss) (Max) @ Vds	6904 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	DirectFET™ Isometric ME
Power Dissipation (Max)	104 W
Rds On (Max) @ Id, Vgs	1.25 mOhm
Supplier Device Package	DirectFET™ Isometric ME
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

IRL7486 Series

Part	Supplier Device Package	Power Dissipation (Max)	Vgs (Max)	Technology	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Package / Case	FET Type	Current - Continuous Drain (Id) @ 25°C
Infineon Technologies IRL7486MTRPBF	DirectFET™ Isometric ME	104 W	20 V	MOSFET (Metal Oxide)	1.25 mOhm	6904 pF	Surface Mount	4.5 V 10 V	40 V	-55 °C	150 °C	2.5 V	4.5 V 111 nC	DirectFET™ Isometric ME	N-Channel	209 A
Infineon Technologies IRL7486MTRPBF	DirectFET™ Isometric ME	104 W	20 V	MOSFET (Metal Oxide)	1.25 mOhm	6904 pF	Surface Mount	4.5 V 10 V	40 V	-55 °C	150 °C	2.5 V	4.5 V 111 nC	DirectFET™ Isometric ME	N-Channel	209 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	249	$ 1.21
		249	$ 1.21
	Cut Tape (CT)	1	$ 3.07
		1	$ 3.07
		10	$ 1.99
		10	$ 1.99
		100	$ 1.38
		100	$ 1.38
		500	$ 1.12
		500	$ 1.12
		1000	$ 1.03
		1000	$ 1.03
		2000	$ 0.97
		2000	$ 0.97
	Digi-Reel®	1	$ 3.07
		1	$ 3.07
		10	$ 1.99
		10	$ 1.99
		100	$ 1.38
		100	$ 1.38
		500	$ 1.12
		500	$ 1.12
		1000	$ 1.03
		1000	$ 1.03
		2000	$ 0.97
		2000	$ 0.97
	Tape & Reel (TR)	4800	$ 0.97
		4800	$ 0.97
Newark	Each (Supplied on Cut Tape)	1	$ 2.24
		10	$ 1.66
		25	$ 1.56
		50	$ 1.44
		100	$ 1.34
		250	$ 1.33
		500	$ 1.20
		1000	$ 1.17

Description

General part information

IRL7486 Series

IRL7486MTRPBF is a N channel power MOSFET. Application includes brushed motor drive applications, BLDC motor drive applications, battery powered circuits, half-bridge and full-bridge topologies, synchronous rectifier applications, resonant mode power supplies, OR-ing and redundant power switches, DC/DC and AC/DC converters, DC/AC inverters.
