155210-6302-RB

Active

3M (TC)

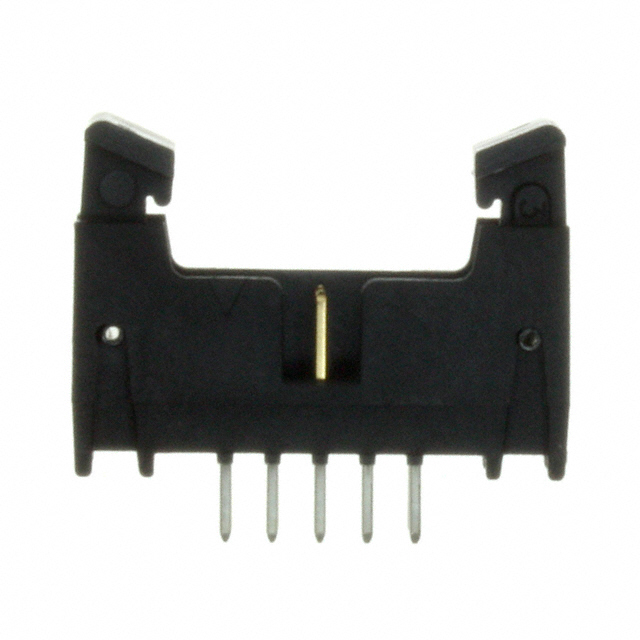

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

155210-6302-RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	155210-6302-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

155210 Series

Part	Fastening Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Number of Positions	Contact Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Material Flammability Rating	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Shrouding	Contact Material	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Contact Length - Post	Contact Length - Post
3M (TC) 155210-2300-RB-WD	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot Pick and Place	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-5303-RA	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	10 çin	0.25 çm	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-5203-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-6302-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5302-RA	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	10 çin	0.25 çm	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5302-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5303-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-2200-RB-WD	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot Pick and Place	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-2400-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-5202-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.02
		10	$ 7.25
		273	$ 5.68
		546	$ 5.35
		1092	$ 4.68

Description

General part information

155210 Series

The 1552 series straight surface mount through-hole Latch/Eject Header with copper alloy contacts and a glass-filled polyester insulator. The roll pins retain latches to body in shipping and high vibration environments. The robust system solution when used with 3M™ IDC wiremount sockets or 3M™ moulded cable assemblies.
