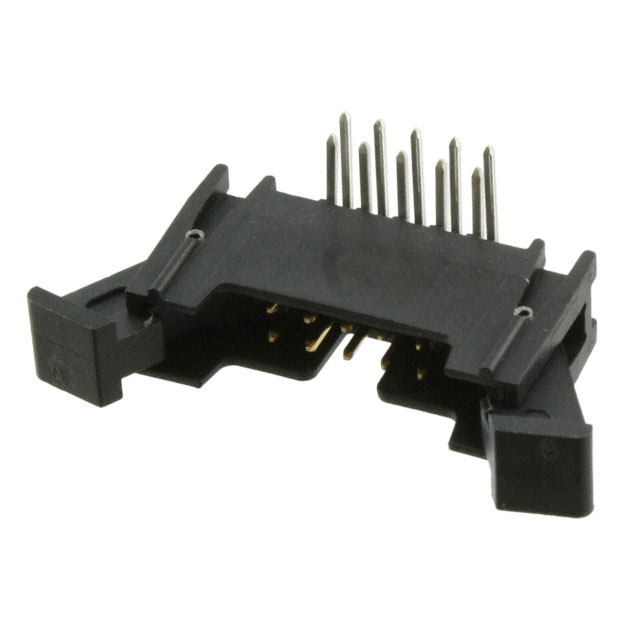

155210-5202-RB

Active

3M (TC)

CONN EJECTOR HEADER HDR 10 POS 2MM SOLDER RA THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155210-5202-RB

Active

3M (TC)

CONN EJECTOR HEADER HDR 10 POS 2MM SOLDER RA THRU-HOLE BOX

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	155210-5202-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	6.28 mm
Insulation Height	0.247 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

155210 Series

Part	Fastening Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Number of Positions	Contact Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Material Flammability Rating	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Shrouding	Contact Material	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Contact Length - Post	Contact Length - Post
3M (TC) 155210-2300-RB-WD	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot Pick and Place	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-5303-RA	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	10 çin	0.25 çm	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-5203-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-6302-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5302-RA	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	10 çin	0.25 çm	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5302-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in
3M (TC) 155210-5303-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	3.94 mm	0.155 "
3M (TC) 155210-2200-RB-WD	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot Pick and Place	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-2400-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Surface Mount	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.425 in	10.8 mm	All	30 Áin	0.76 Ám	Tin	Solder
3M (TC) 155210-5202-RB	Latch Lock/Eject Hooks	2	0.079 in	2 mm	Square	Black	0.079 in	2 mm	1.25 A	10	Male Pin	0.15 in	3.81 mm	Header	UL94 V-0	Through Hole Right Angle	Keying Slot	105 ░C	-55 °C	200 µin	5.08 µm	Gold	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	0.247 in	6.28 mm	All	30 Áin	0.76 Ám	Tin	Solder	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1092	$ 5.04

Description

General part information

155210 Series

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet
