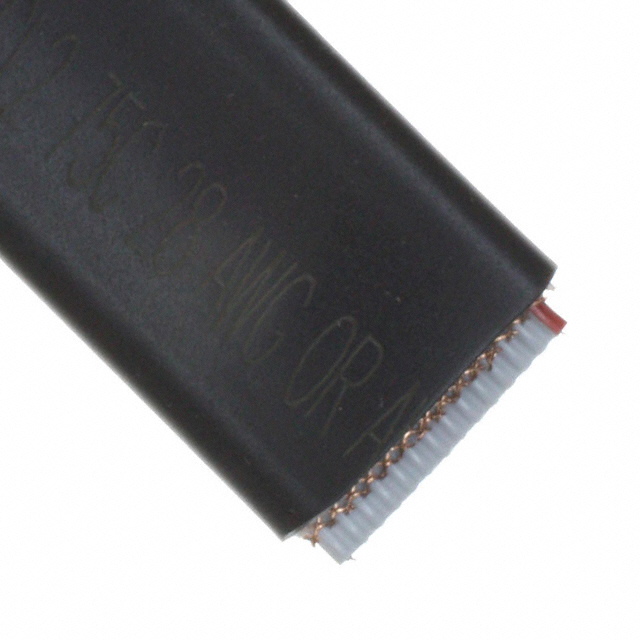

3517/14 100

Active

3M (TC)

CABLE RIBBON 14COND 0.05 GRAY

Deep-Dive with AI

Search across all available documentation for this part.

Documentscable Mating Guide Datasheet

3517/14 100

Active

3M (TC)

CABLE RIBBON 14COND 0.05 GRAY

Deep-Dive with AI

Documentscable Mating Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3517/14 100

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 1 ft, 50 ft
Length	7.62 m, 304.8 mm, 15.24 m
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Number of Conductors	14
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2912
Ribbon Thickness	0.11 in
Ribbon Thickness	2.79 mm
Ribbon Width	0.83 "
Ribbon Width	21.08 mm
Shielding	Shielded
Voltage	300 V
Wire Gauge	28 AWG

3517 Series

Part	Length	Length	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [y]	Ribbon Width [y]	Wire Gauge	Shielding	Cable Type	Insulation Resistance	Jacket Color	Voltage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Conductors	First Conductor Mark	Conductor Material	Jacket (Insulation) Material	Ratings	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width [x]	Ribbon Width
3M (TC) 3517/10 100SF	15.24 m	50 ft	0.05 in	1.27 mm	7	36 AWG	0.63 in	16 mm	28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m	10 ft	-20 C	80 C	Splice Free	10	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/20 100SF	7.62 m 15.24 m	25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V			-20 C	80 C	Splice Free	20	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	28.7 mm	1.13 "
3M (TC) 3517/25-100			0.05 in	1.27 mm	7	36 AWG	1.38 in	35.05 mm	28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C		25	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/16 100SF	7.62 m 304.8 mm	1 ft 25 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	Splice Free	16	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/60 100			0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C		60	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	79.5 mm	3.13 in
3M (TC) 3517/15 100SF	7.62 m 15.24 m	25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C	Splice Free	15	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	22.35 mm		0.88 in
3M (TC) 3517/14 100SF	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	Splice Free	14	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	21.08 mm		0.83 "
3M (TC) 3517/60 100SF			0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C	Splice Free	60	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	79.5 mm	3.13 in
3M (TC) 3517/14 100	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C		14	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	21.08 mm		0.83 "
3M (TC) 3517/10	91.44 m	300 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.38
		1	$ 273.16
		1	$ 144.31
		1	$ 65.42
		1	$ 32.71
		5	$ 5.88
		5	$ 26.02
		5	$ 52.03
		5	$ 217.22
		5	$ 114.68
		10	$ 47.20
		10	$ 197.47
		10	$ 23.60
		10	$ 104.26
		10	$ 5.34
		25	$ 4.70
		25	$ 173.33
		25	$ 41.49
		25	$ 91.64
		25	$ 20.75
		50	$ 37.54
		50	$ 82.86
		50	$ 18.77
		50	$ 142.62
		50	$ 4.26
		100	$ 34.03
		100	$ 71.33
		100	$ 17.02
		100	$ 3.86
	Spool	100	$ 3.83
		300	$ 3.35
		500	$ 3.05
		1000	$ 2.83

Description

General part information

3517 Series

Flat Ribbon Cable Gray 14 Conductors 0.050" (1.27mm) Flat Cable, Flat Jacket 100.0' (30.48m)
