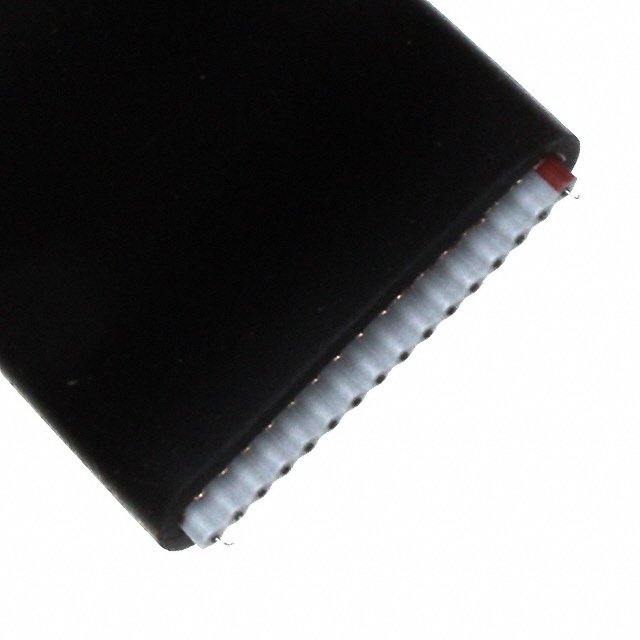

3517/16 100SF

Active

3M (TC)

CBL RIBN 16COND 0.05 GRAY 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3517/16 100SF

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft, 25 ft
Length	304.8 mm, 7.62 m
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2912
Ribbon Thickness	0.11 in
Ribbon Thickness	2.79 mm
Shielding	Shielded
Voltage	300 V
Wire Gauge	28 AWG

3517 Series

Part	Length	Length	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [y]	Ribbon Width [y]	Wire Gauge	Shielding	Cable Type	Insulation Resistance	Jacket Color	Voltage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Conductors	First Conductor Mark	Conductor Material	Jacket (Insulation) Material	Ratings	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width [x]	Ribbon Width
3M (TC) 3517/10 100SF	15.24 m	50 ft	0.05 in	1.27 mm	7	36 AWG	0.63 in	16 mm	28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m	10 ft	-20 C	80 C	Splice Free	10	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/20 100SF	7.62 m 15.24 m	25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V			-20 C	80 C	Splice Free	20	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	28.7 mm	1.13 "
3M (TC) 3517/25-100			0.05 in	1.27 mm	7	36 AWG	1.38 in	35.05 mm	28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C		25	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/16 100SF	7.62 m 304.8 mm	1 ft 25 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	Splice Free	16	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm
3M (TC) 3517/60 100			0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C		60	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	79.5 mm	3.13 in
3M (TC) 3517/15 100SF	7.62 m 15.24 m	25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C	Splice Free	15	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	22.35 mm		0.88 in
3M (TC) 3517/14 100SF	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	Splice Free	14	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	21.08 mm		0.83 "
3M (TC) 3517/60 100SF			0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	30.48 m	100 ft	-20 C	80 C	Splice Free	60	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	79.5 mm	3.13 in
3M (TC) 3517/14 100	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft	0.05 in	1.27 mm	7	36 AWG			28 AWG	Shielded	Flat Cable Flat Jacket	10 GOhm	Gray	300 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C		14	Red	Copper Tinned	Poly-Vinyl Chloride (PVC)	UL Style 2912	0.11 in	2.79 mm	21.08 mm		0.83 "
3M (TC) 3517/10	91.44 m	300 ft
