TLV7162828PDPQT
Active150-MA, DUAL-CHANNEL LOW-DROPOUT VOLTAGE REGULATOR WITH ENABLE 6-X2SON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
TLV7162828PDPQT
Active150-MA, DUAL-CHANNEL LOW-DROPOUT VOLTAGE REGULATOR WITH ENABLE 6-X2SON -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TLV7162828PDPQT | TLV716P Series |
|---|---|---|
| Control Features | Enable | Enable |
| Current - Output | 150 mA | 150 mA |
| Current - Quiescent (Iq) | 75 µA | 75 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Regulators | 2 | 2 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | 27.03 °C/W | 27.03 °C/W |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Protection Features | Short Circuit, Under Voltage Lockout (UVLO), Over Temperature, Over Current, Reverse Polarity | Short Circuit, Under Voltage Lockout (UVLO), Over Temperature, Over Current, Reverse Polarity |
| PSRR [Max] | 46 dB | 46 dB |
| PSRR [Min] | 80 dB | 80 dB |

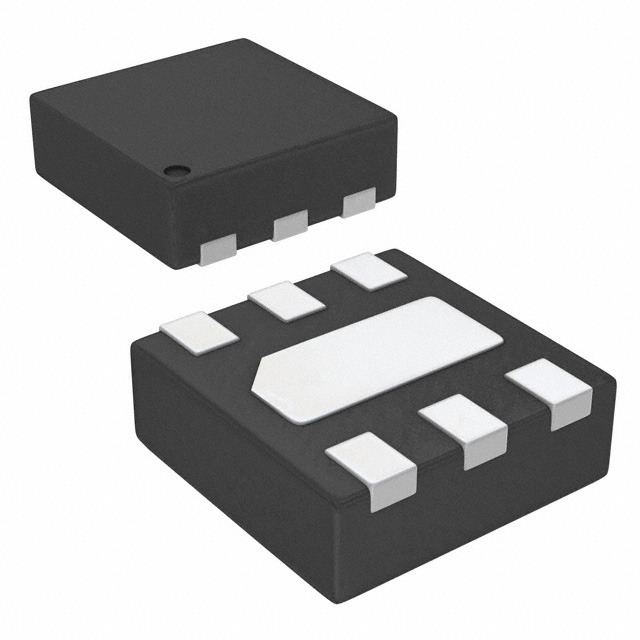

| Supplier Device Package | 6-X2SON (1.2x1.2) | 6-X2SON (1.2x1.2) |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Output (Min/Fixed) | 2.8 V | 1.8 - 2.8 V |
| Voltage - Output (Min/Fixed) | - | 1.2 - 3.3 V |
| Voltage - Output (Min/Fixed) | - | 1.8 V |
| Voltage Dropout (Max) | 0.45 V | 0.45 V |
| Voltage Dropout (Max) | 0.45 V | 0.45 V |
| Voltage Dropout (Max) | - | 0.42 - 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 695 | $ 0.43 | |
| Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | 1 | $ 0.90 | ||
| 10 | $ 0.65 | |||
| 25 | $ 0.58 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.46 | |||
| 750 | $ 0.45 | |||
| 1250 | $ 0.44 | |||
| 1750 | $ 0.43 | |||
| 2500 | $ 0.42 | |||
| 6250 | $ 0.41 | |||
| 12500 | $ 0.40 | |||
| 25000 | $ 0.40 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 100 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 100 | $ 0.69 | |||
| Tape & Reel (TR) | 250 | $ 0.46 | ||
| 500 | $ 0.40 | |||
| 1250 | $ 0.37 | |||
| Mouser Electronics | N/A | 1 | $ 0.90 | |
| 10 | $ 0.58 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.42 | |||
| 5000 | $ 0.41 | |||
| 10000 | $ 0.40 | |||
| Rochester Electronics | N/A | 1 | $ 0.42 | |
| 25 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.35 | |||
| Texas Instruments | SMALL T&R | 1 | $ 0.92 | |
| 100 | $ 0.60 | |||
| 250 | $ 0.45 | |||
| 1000 | $ 0.30 | |||
| Verical | N/A | 803 | $ 0.47 | |
| 803 | $ 0.47 | |||
| 1000 | $ 0.44 | |||
| 1000 | $ 0.44 | |||
TLV716P Series
150-mA, dual-channel low-dropout voltage regulator with enable
| Part | Number of Regulators | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Control Features | Voltage - Output (Min/Fixed) | Voltage - Output (Min/Fixed) [Min] | Protection Features | Package / Case | Output Configuration | PSRR [Max] | PSRR [Min] | Current - Quiescent (Iq) | Voltage - Input (Max) [Max] | Output Type | Voltage Dropout (Max) | Mounting Type | Voltage Dropout (Max) | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TLV7163318PDPQT | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 1.8 V | 3.3 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.42 V, 0.58 V | Surface Mount | |||
Texas Instruments TLV7162828PDPQR | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.8 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | Surface Mount | 0.45 V | 0.45 V | |||
Texas Instruments TLV7163030PDPQR | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.42 V | Surface Mount | |||||
Texas Instruments TLV7163030PDPQT | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.42 V | Surface Mount | |||||
Texas Instruments TLV7162818PDPQR | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.8 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.45 V, 0.9 V | Surface Mount | 1.8 V | |||
Texas Instruments TLV716120275PDPQR | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.75 V | 1.2 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.45 V, 1 V | Surface Mount | |||
Texas Instruments TLV716120275PDPQT | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.75 V | 1.2 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.45 V, 1 V | Surface Mount | |||
Texas Instruments TLV7162828PDPQT | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.8 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | Surface Mount | 0.45 V | 0.45 V | |||
Texas Instruments TLV7162818PDPQT | 2 | 150 mA | 125 ¯C | -40 °C | 6-X2SON (1.2x1.2) | Enable | 2.8 V | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | 6-XFDFN Exposed Pad | Positive | 46 dB | 80 dB | 75 µA | 5.5 V | 27.03 °C/W | 0.45 V, 0.9 V | Surface Mount | 1.8 V |
Description
General part information
TLV716P Series
The TLV716 is a family of dual-channel, capacitor-free,150-mA, low-dropout (LDO) voltage regulators with multiple fixed-output options available from 1 V to 3.3 V. These devices provide an initial 1% accuracy and 1.5% accuracy overtemperature.
The TLV716 family is designed to be stable with or without an input or output capacitor. Eliminating the output capacitor allows for a very small solution size. The TLV716P series provides an active pulldown circuit to quickly discharge the output voltage if the application requires an output capacitor.
The device provides inrush current control during device power up and enabling. Inrush control provides constant-current charging of the output load during start-up, thereby reducing the risk of an undesired overcurrent fault from the input supply or battery.
