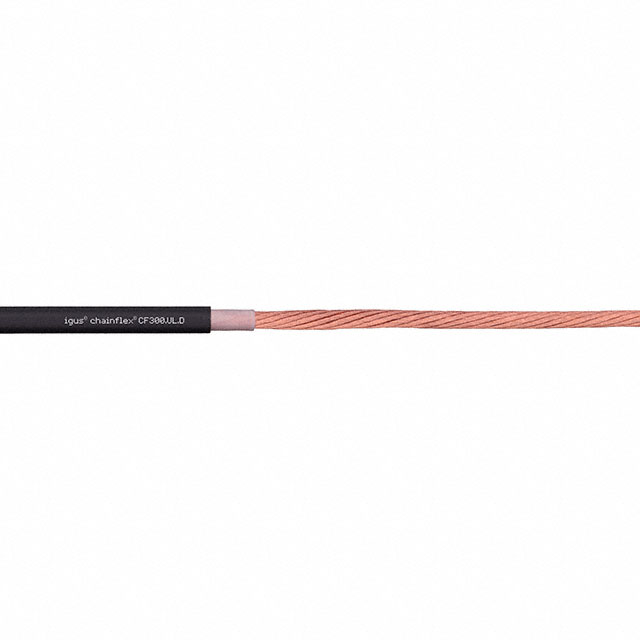

CF300-UL-1850-01-D

Active

Igus

TPE 1C/350, HOOK UP WIRE 1KV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF300-UL-1850-01-D

Active

Igus

TPE 1C/350, HOOK UP WIRE 1KV

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF300-UL-1850-01-D	CF300 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Bare	Copper, Bare
Features	Oil Resistant, Abrasion Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, UV Resistant
Jacket (Insulation) Diameter	-	0.256 - 0.925 in
Jacket (Insulation) Diameter [diameter]	26.5 mm	26.5 mm
Jacket (Insulation) Diameter [diameter]	1.043 in	1.043 - 23.5 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-35 °C	-35 °C
Ratings	UL Style 21218	UL Style 21218
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	1000 V	1000 V
Wire Gauge	350 MCM (kcmil)	4 - 350 AWG

CF300 Series

TPE1C/6AWG HK UP WIRE 1KV FEET

Part	Length	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Jacket Color	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Spool Size	Spool Size	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]
Igus CF300-UL-160-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	9.5 mm	0.374 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	6 AWG	Hook-Up
Igus CF300-UL-1500-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	23.5 mm	0.925 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)			300 MCM (kcmil)	Hook-Up
Igus CF300-UL-1200-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	21.5 mm	0.846 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	4 aught AWG	Hook-Up
Igus CF300-UL-100-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant			Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	8 AWG	Hook-Up
Igus CF300-UL-40-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	6.5 mm	0.256 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	12 AWG	Hook-Up
Igus CF300-UL-950-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	20 mm	0.787 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)				Hook-Up
Igus CF300-UL-1850-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	1.043 in		Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)			350 MCM (kcmil)	Hook-Up	26.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.05
		500	$ 43.25
		1000	$ 41.53

Description

General part information

CF300 Series

350MCM (kcmil) Hook-Up Wire Black 1000V Enter Number of Feet in Order Quantity
