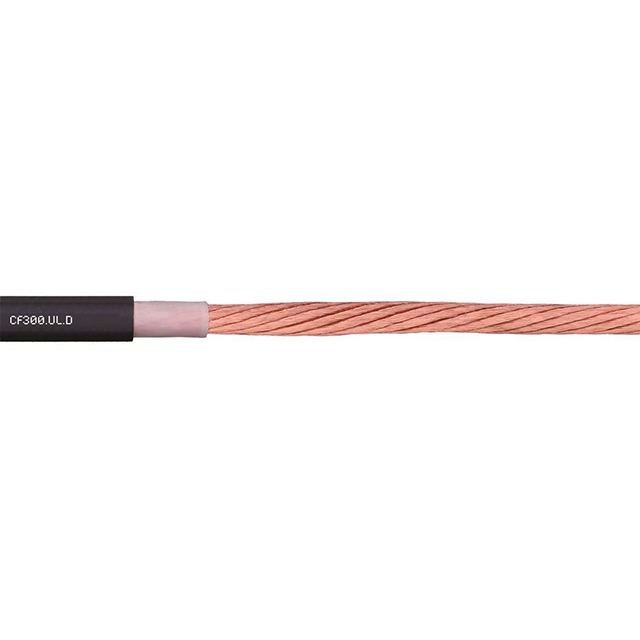

CF300-UL-1200-01-D

Active

Igus

TPE1C-4/0AWG HK UP WIRE 1KV FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF300-UL-1200-01-D

Active

Igus

TPE1C-4/0AWG HK UP WIRE 1KV FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF300-UL-1200-01-D	CF300 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Bare	Copper, Bare
Features	Oil Resistant, Abrasion Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, UV Resistant
Jacket (Insulation) Diameter	-	26.5 mm
Jacket (Insulation) Diameter [diameter]	21.5 mm	1.043 - 23.5 mm
Jacket (Insulation) Diameter [diameter]	0.846 in	0.256 - 0.925 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-35 °C	-35 °C
Ratings	UL Style 21218	UL Style 21218
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Voltage	1000 V	1000 V
Wire Gauge	4 aught AWG	4 - 350 AWG

CF300 Series

TPE1C/6AWG HK UP WIRE 1KV FEET

Part	Length	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Jacket Color	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Spool Size	Spool Size	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]
Igus CF300-UL-160-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	9.5 mm	0.374 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	6 AWG	Hook-Up
Igus CF300-UL-1500-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	23.5 mm	0.925 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)			300 MCM (kcmil)	Hook-Up
Igus CF300-UL-1200-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	21.5 mm	0.846 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	4 aught AWG	Hook-Up
Igus CF300-UL-100-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant			Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	8 AWG	Hook-Up
Igus CF300-UL-40-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	6.5 mm	0.256 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	12 AWG	Hook-Up
Igus CF300-UL-950-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	20 mm	0.787 in	Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)				Hook-Up
Igus CF300-UL-1850-01-D	Enter Number of Feet in Order Quantity	Abrasion Resistant, Oil Resistant, UV Resistant	1.043 in		Copper, Bare	1000 V	Black	UL Style 21218	-35 °C	90 °C	Thermoplastic Elastomer (TPE)			350 MCM (kcmil)	Hook-Up	26.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 43.17
		3	$ 39.94
		5	$ 38.55
		7	$ 37.63
		10	$ 36.70
		25	$ 34.40
		50	$ 32.55
		100	$ 31.16

Description

General part information

CF300 Series

4/0 AWG Hook-Up Wire Black 1000V Enter Number of Feet in Order Quantity
