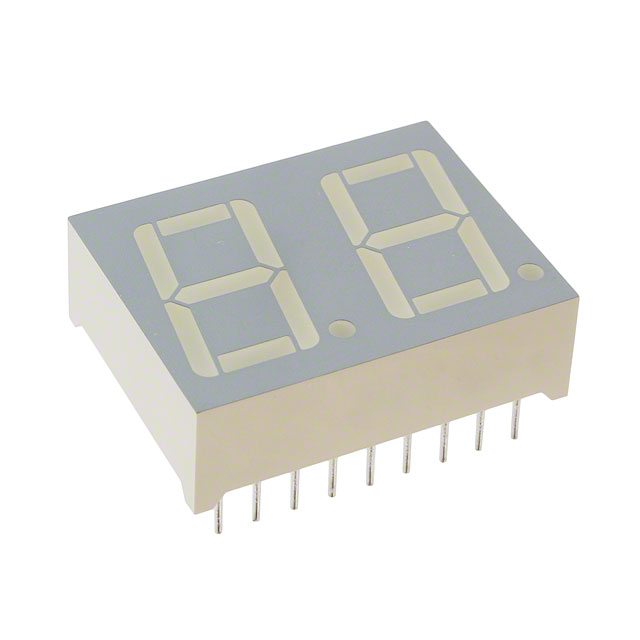

DC56-11GWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, GREEN, 20 MA, 2.2 V, 11000 µCD, 2, 14.22 MM

Find alt

Alpha

DC56-11GWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, GREEN, 20 MA, 2.2 V, 11000 µCD, 2, 14.22 MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

DC56-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Cathode 2.2V 20mA 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)

Technical Specifications

Parameters and characteristics for this part

Specification	DC56-11GWA

Color	Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters	2 characters
Package Length	0.6 in
Package Name	18-DIP
Package Width	15.24 mm
Power Dissipation (Max)	62.5 mW
Size / Dimension Depth	0.315 in
Size / Dimension Height	0.75 in
Size / Dimension Width	0.984 in
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

DC56-11 Series

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Digit/Alpha Size	Package Length	Package Name	Package Width	Size / Dimension Width	Size / Dimension Height	Size / Dimension Depth	Number of Characters	Wavelength - Peak	Millicandela Rating	Color	Display Type	Power Dissipation (Max)	Common Pin
Kingbright DC56-11GWA	2.2 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.984 in	0.75 in	0.315 in	2 characters	565 nm	11 mcd	Green	7-Segment	62.5 mW	Common Cathode
Kingbright DC56-11SRWA	1.85 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.984 in	0.75 in	0.315 in	2 characters	660 nm	28 mcd	Red	7-Segment	75 mw	Common Cathode
Kingbright DC56-11YWA	2.1 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.984 in	0.75 in	0.315 in	2 characters	590 nm	6.5 mcd	Yellow	7-Segment	75 mw	Common Cathode
Kingbright DC56-11SURKWA	1.95 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.75 in	0.984 in	0.268 in	2 characters	645 nm	85 mcd	Red	7-Segment	75 mw	Common Cathode
Kingbright DC56-11EWA	2 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.984 in	0.75 in	0.315 in	2 characters	627 nm	8 mcd	Red	7-Segment	75 mw	Common Cathode
Kingbright DC56-11CGKWA	2.1 V	20 mA	0.56 in	0.6 in	18-DIP	15.24 mm	0.75 in	0.984 in	0.268 in	2 characters	574 nm	35 mcd	Green	7-Segment	75 mw	Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DC56-11GWA | Datasheet

Technical Data Sheet EN

Datasheet
