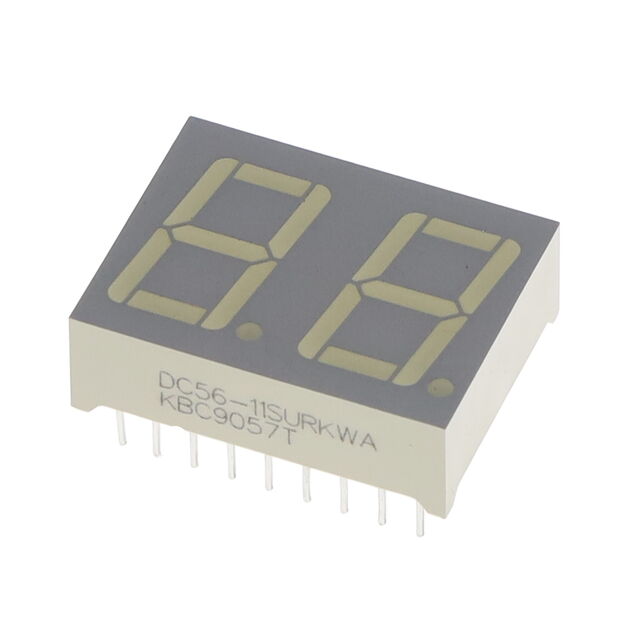

DC56-11SURKWA

Active

Kingbright

DISPLAY 7SEG 0.56" DBL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC56-11SURKWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	85 mcd
Number of Characters	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.984 in
Size / Dimension [x]	25 mm
Size / Dimension [y]	0.75 in
Size / Dimension [y]	19.05 mm
Size / Dimension [z]	6.8 mm
Size / Dimension [z]	0.268 in
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

DC56-11 Series

Part	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Color	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Common Pin	Current - Test	Number of Characters	Wavelength - Peak
Kingbright DC56-11GWA	15.24 mm	0.6 in	18-DIP	2.2 V	0.56 in	14.22 mm	Green	11 mcd	62.5 mW	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	565 nm
Kingbright DC56-11SRWA	15.24 mm	0.6 in	18-DIP	1.85 V	0.56 in	14.22 mm	Red	28 mcd	75 mw	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	660 nm
Kingbright DC56-11YWA	15.24 mm	0.6 in	18-DIP	2.1 V	0.56 in	14.22 mm	Yellow	6.5 mcd	75 mw	7-Segment	19.05 mm	25 mm	0.984 in	8 mm	0.315 "	0.75 in	Common Cathode	20 mA	2	590 nm
Kingbright DC56-11SURKWA	15.24 mm	0.6 in	18-DIP	1.95 V	0.56 in	14.22 mm	Red	85 mcd	75 mw	7-Segment	25 mm	19.05 mm	0.75 in	6.8 mm	0.268 in	0.984 in	Common Cathode	20 mA	2	645 nm
Kingbright DC56-11CGKWA	15.24 mm	0.6 in	18-DIP	2.1 V	0.56 in	14.22 mm	Green	35 mcd	75 mw	7-Segment	25 mm	19.05 mm	0.75 in	6.8 mm	0.268 in	0.984 in	Common Cathode	20 mA	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.33
		20	$ 2.35
		100	$ 1.93
		500	$ 1.62
		1000	$ 1.49
		2000	$ 1.43
		5000	$ 1.40

Description

General part information

DC56-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 1.95V 20mA 0.984" H x 0.750" W x 0.268" D (25.00mm x 19.05mm x 6.80mm) 18-DIP (0.600", 15.24mm)
