031-2242-RFX

Active

AMPHENOL RF

CONN TNC PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN TNC PLUG STR 50 OHM CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

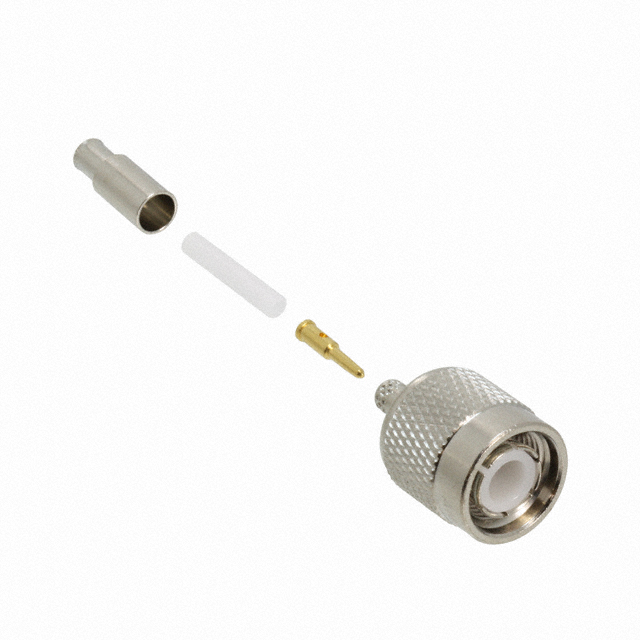

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	031-2242-RFX	031-22 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B	108A, RG-108, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TNC	BNC, Twinaxial, TNC
Connector Type	Male Pin, Plug	Male Pin, Female Socket, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Gasket, 2 Washers, 1 Braid Clamp, 1 Clamp, 2 Insulators, 2 Contacts, 1 Connector, 1 Ferrule, 1 Contact
Ingress Protection	-	Weatherproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	200 - 500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Clamp, Crimp
Voltage Rating	500 V	100 - 500 V

CONN TWINAX PLUG STR 50 OHM

Part	Number of Ports	Voltage Rating	Connector Style	Body Finish	Center Contact Material	Connector Type	Ingress Protection	Includes	Contact Termination	Center Contact Plating	Body Material	Impedance	Shield Termination	Fastening Type	Cable Group	Housing Color	Mating Cycles	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-2226-1051	1	100 V	BNC, Twinaxial	Nickel	Beryllium Copper, Brass	Female Socket, Male Pin, Plug	Weatherproof	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Gasket, 2 Contacts, 2 Insulators, 2 Washers	Solder	Gold	Brass	50 Ohms	Clamp	Bayonet Lock	108A, RG-108	Silver	200	Polytetrafluoroethylene (PTFE)	0.2 dB	Free Hanging (In-Line)	-65 ░C	165 °C
AMPHENOL RF 031-2242-RFX	1	500 V	TNC	Nickel	Brass	Male Pin, Plug		1 Connector, 1 Contact, 1 Ferrule	Crimp	Gold	Brass	50 Ohms	Crimp		179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	Silver	500	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)	-65 ░C	165 °C
