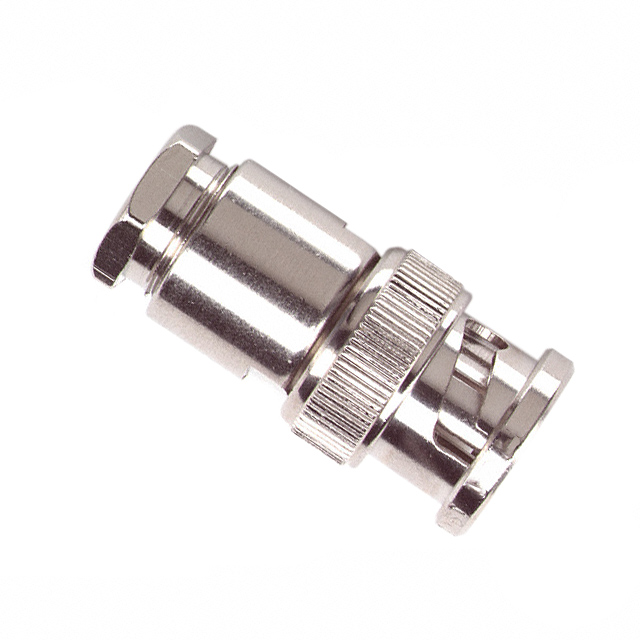

031-2226-1051

Active

AMPHENOL RF

CONN TWINAX PLUG STR 50 OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN TWINAX PLUG STR 50 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-2226-1051	031-22 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	108A, RG-108	108A, RG-108, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass, Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	BNC, Twinaxial	BNC, Twinaxial, TNC
Connector Type	Male Pin, Female Socket, Plug	Male Pin, Female Socket, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Gasket, 2 Washers, 1 Braid Clamp, 1 Clamp, 2 Insulators, 2 Contacts, 1 Connector	1 Gasket, 2 Washers, 1 Braid Clamp, 1 Clamp, 2 Insulators, 2 Contacts, 1 Connector, 1 Ferrule, 1 Contact
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	200	200 - 500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp, Crimp
Voltage Rating	100 V	100 - 500 V

CONN TWINAX PLUG STR 50 OHM

Part	Number of Ports	Voltage Rating	Connector Style	Body Finish	Center Contact Material	Connector Type	Ingress Protection	Includes	Contact Termination	Center Contact Plating	Body Material	Impedance	Shield Termination	Fastening Type	Cable Group	Housing Color	Mating Cycles	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-2226-1051	1	100 V	BNC, Twinaxial	Nickel	Beryllium Copper, Brass	Female Socket, Male Pin, Plug	Weatherproof	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Gasket, 2 Contacts, 2 Insulators, 2 Washers	Solder	Gold	Brass	50 Ohms	Clamp	Bayonet Lock	108A, RG-108	Silver	200	Polytetrafluoroethylene (PTFE)	0.2 dB	Free Hanging (In-Line)	-65 ░C	165 °C
AMPHENOL RF 031-2242-RFX	1	500 V	TNC	Nickel	Brass	Male Pin, Plug		1 Connector, 1 Contact, 1 Ferrule	Crimp	Gold	Brass	50 Ohms	Crimp		179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179	Silver	500	Polytetrafluoroethylene (PTFE)		Free Hanging (In-Line)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Twinaxial Connector Plug, Female Socket and Male Pin 50 Ohms Free Hanging (In-Line) Solder
