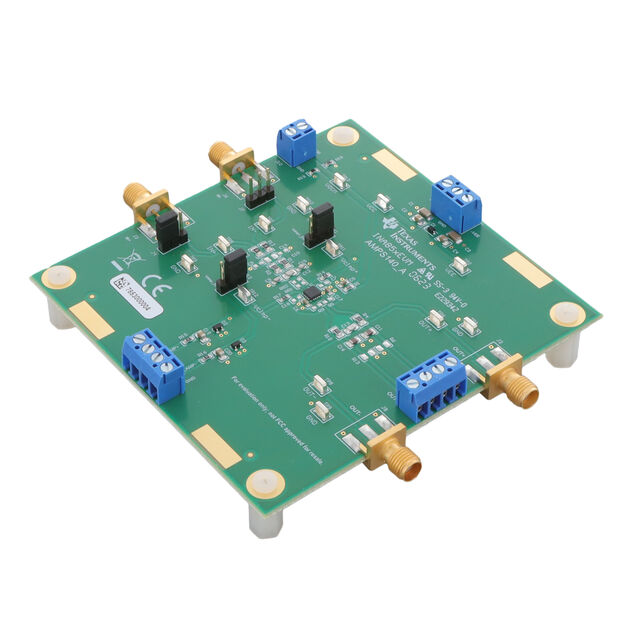

Specification	INA851EVM

-3db Bandwidth	22 MHz
Amplifier Type	Instrumentation
Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output / Channel	37 mA
Current - Supply (Main IC)	0.006 mA
Output Type	Differential
Slew Rate	37 V/µs
Supplied Contents	Board(s)
Supply Configuration	Single, Dual
Utilized IC / Part	INA851
Voltage - Supply (Dual) Maximum (Magnitude)	18 V
Voltage - Supply (Dual) Minimum (Magnitude)	4 V
Voltage - Supply (Single) Maximum	36 V
Voltage - Supply (Single) Minimum	8 V

INA851 Series

Part	Board Type	Supplied Contents	Current - Supply (Main IC)	Current - Output / Channel	-3db Bandwidth	Supply Configuration	Voltage - Supply (Single) Minimum	Voltage - Supply (Single) Maximum	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Dual) Minimum (Magnitude)	Amplifier Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Slew Rate	Contents	Utilized IC / Part	Output Type	Package / Case	Package Length	Package Name	Package Width	Voltage - Supply Span (Min)	Voltage - Supply Span (Max)	Current - Input Bias	Current - Supply	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Circuits	Voltage - Input Offset
Texas Instruments INA851EVM	Fully Populated	Board(s)	0.006 mA	37 mA	22 MHz	Dual Single	8 V	36 V	18 V	4 V	Instrumentation	1	Single	1	37 V/µs	Board	INA851	Differential
Texas Instruments INA851RGTR				37 mA	800 kHz						Instrumentation				37 V/µs			Differential	16-VFQFN Exposed Pad	3 mm	16-VQFN	3 mm	8 V	36 V	5 nA	6 mA	125 °C	-40 °C	Surface Mount	1	10 ĄV
Texas Instruments INA851RGTT				37 mA	800 kHz						Instrumentation				37 V/µs			Differential	16-VFQFN Exposed Pad	3 mm	16-VQFN	3 mm	8 V	36 V	5 nA	6 mA	125 °C	-40 °C	Surface Mount	1	10 ĄV
