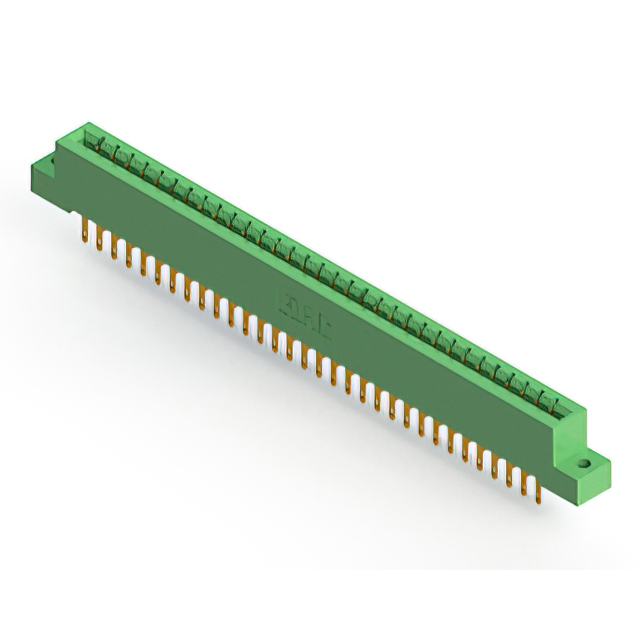

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-064-500-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-064-500-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
333-064 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Material - Insulation | Contact Material | Termination | Read Out | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Number of Rows | Gender | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Solder | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 64 | Through Hole Right Angle | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Solder | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Solder | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 64 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Solder | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Diallyl Phthalate (DAP) | Copper Alloy | Solder Eyelet(s) | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 64 | Through Hole Right Angle | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Solder | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Non Specified - Dual Edge | 64 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Dual | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | 64 | Through Hole | 0.156 in | 3.96 mm | Green | -40 °C | 105 ░C | 32 | 2 | 2 | Female |
