EDAC Inc.

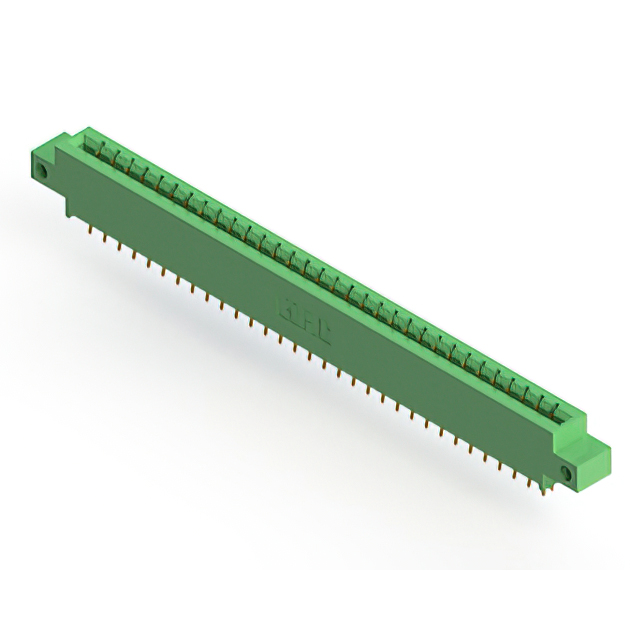

CONN EDGE DUAL FMALE 64POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

333-064-556-812

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-064-556-812

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-064 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material - Insulation	Contact Material	Termination	Read Out	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Gender	Features	Flange Feature	Flange Feature
EDAC Inc. 333-064-520-803	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Solder	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-558-207	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Wire Wrap	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening		Non Specified - Dual Edge	64	Through Hole Right Angle	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-523-803	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Solder	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-556-812	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Solder	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded		Non Specified - Dual Edge	64	Board Edge Straddle Mount	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female	Card Extender	3.25 mm	0.128 in
EDAC Inc. 333-064-524-202	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Solder	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-500-202	10 Áin	0.25 Ám	Gold	Diallyl Phthalate (DAP)	Copper Alloy	Solder Eyelet(s)	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-544-807	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Wire Wrap	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening		Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-559-212	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Wire Wrap	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Non Specified - Dual Edge	64	Through Hole Right Angle	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
EDAC Inc. 333-064-556-803	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Solder	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Non Specified - Dual Edge	64	Board Edge Straddle Mount	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female	Card Extender
EDAC Inc. 333-064-540-204	10 Áin	0.25 Ám	Gold	Polyester Thermoplastic	Copper Alloy	Wire Wrap	Dual	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Non Specified - Dual Edge	64	Through Hole	0.156 in	3.96 mm	Green	-40 °C	105 ░C	32	2	2	Female
