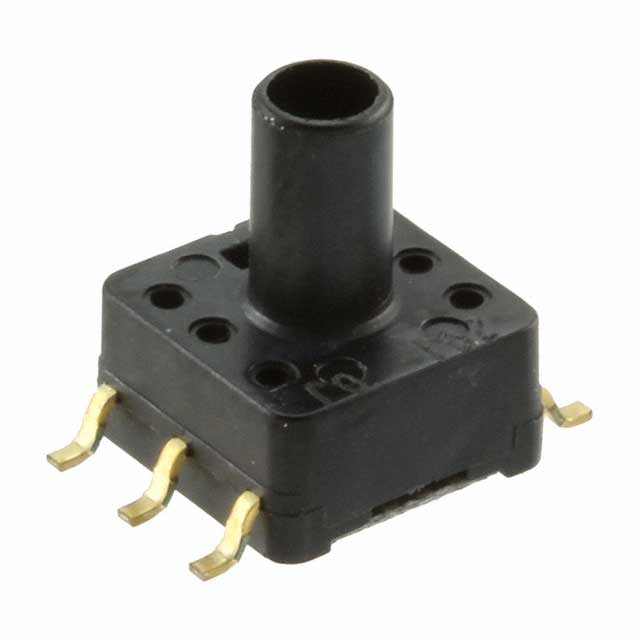

Specification	ADP5261

Accuracy	1.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	145.04 PSI
Mounting Type	Surface Mount
Operating Pressure	72.52 PSI
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-10 °C
Output Type	Wheatstone Bridge
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0 V
Package / Case	6-SMD Module
Port Diameter	0.12 in
Port Feature	Tube
Port Gender	Male
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	Gull Wing
Voltage - Supply	5 VDC

PS-A Series

Part	Maximum Pressure	Port Style	Pressure Type	Mounting Type	Voltage - Supply	Port Diameter	Port Gender	Port Feature	Termination Style	Accuracy	Operating Pressure	Output Voltage (Max)	Features	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Output Type	Package / Case
Panasonic Electronic Components ADP5140	29.01 PSI	Barbless	Vented Gauge	Through Hole	5 VDC	0.12 in	Male	Tube	PC Pin	1.25 %	14.5 PSI	4.5 V	Amplified Output Temperature Compensated	60 °C	-10 °C	Board Mount	Analog Voltage	6-DIP Module
Panasonic Electronic Components ADP5100	29.01 PSI	Barbless	Compound	Through Hole	5 VDC	0.12 in	Male	Tube	PC Pin	1.25 %	14.5 PSI	4.5 V	Amplified Output Temperature Compensated	60 °C	-10 °C	Board Mount	Analog Voltage	6-DIP Module
Panasonic Electronic Components ADP5261	145.04 PSI	Barbless	Vented Gauge	Surface Mount	5 VDC	0.12 in	Male	Tube	Gull Wing	1.5 %	72.52 PSI	4.5 V	Amplified Output Temperature Compensated	60 °C	-10 °C	Board Mount	Wheatstone Bridge	6-SMD Module
Panasonic Electronic Components ADP5111	-29.01 PSI	Barbless	Vacuum	Through Hole	5 VDC	0.12 in	Male	Tube	PC Pin	1.25 %	-14.5 PSI	4.5 V	Amplified Output Temperature Compensated	60 °C	-10 °C	Board Mount	Analog Voltage	6-DIP Module
Panasonic Electronic Components ADP5200	29.01 PSI	Barbless	Compound	Surface Mount	5 VDC	0.12 in	Male	Tube	Gull Wing	1.25 %	14.5 PSI	4.5 V	Amplified Output Temperature Compensated	60 °C	-10 °C	Board Mount	Analog Voltage	6-SMD Module
