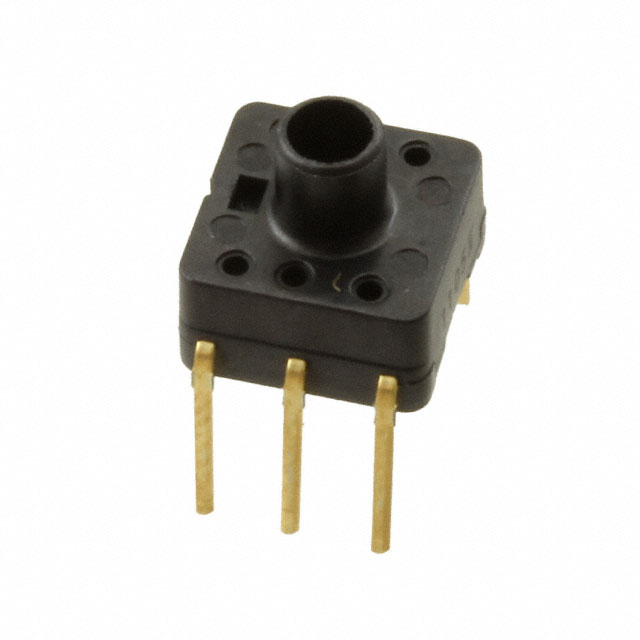

ADP5140

Panasonic Industrial Automation Sales

SENSOR 14.5PSIG 0.12" 4.5V

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

SENSOR 14.5PSIG 0.12" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ADP5140

Accuracy	1.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	200 kPa
Maximum Pressure [Max]	29.01 PSI
Mounting Type	Through Hole
Operating Pressure	100 kPa
Operating Pressure	14.5 PSI
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	6-DIP Module
Port Size	Male - Tube
Port Size	3 mm, 0.12 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Pressure Type	Operating Pressure	Operating Pressure	Accuracy	Port Style	Applications	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size	Port Size	Package / Case	Output [Max]	Output [Min]	Output Type
Panasonic Industrial Automation Sales ADP5141	Amplified Output Temperature Compensated	-10 °C	60 °C	Through Hole	PC Pin	Vented Gauge	100 kPa	14.5 PSI	1.25 %	Barbless	Board Mount	200 kPa	29.01 PSI	Male - Tube	0.12 " 3 mm	6-DIP Module	4.5 V	0 mV	Analog Voltage
Panasonic Industrial Automation Sales ADP5140	Amplified Output Temperature Compensated	-10 °C	60 °C	Through Hole	PC Pin	Vented Gauge	100 kPa	14.5 PSI	1.25 %	Barbless	Board Mount	200 kPa	29.01 PSI	Male - Tube	0.12 " 3 mm	6-DIP Module	4.5 V	0 mV	Analog Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 50.97

General part information

Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 6-DIP Module
