C90-3101F10SL-4P

Active

Harwin Inc.

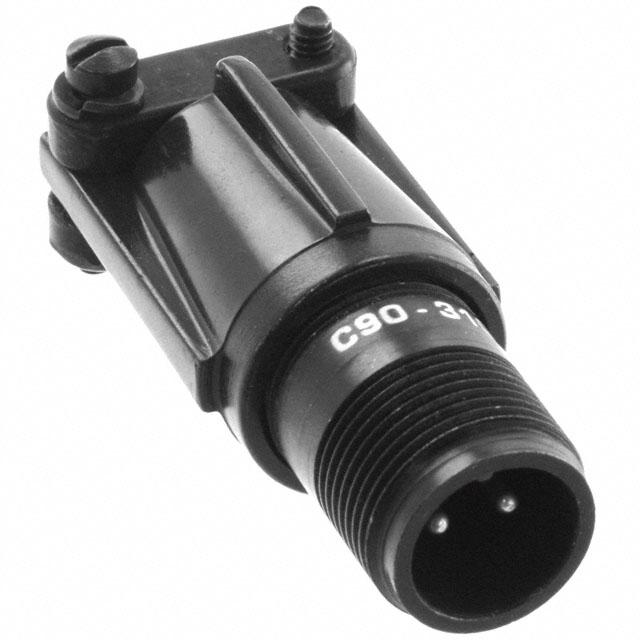

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, RECEPTACLE, 2, PIN, SOLDER, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular Catalog C90-25042-14S +3

C90-3101F10SL-4P

Active

Harwin Inc.

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, RECEPTACLE, 2, PIN, SOLDER, CABLE MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsC90 Circular Catalog C90-25042-14S +3

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.30
		10	$ 14.99
		25	$ 14.21
		50	$ 14.00
		100	$ 12.36
		250	$ 11.53
		500	$ 11.29
Newark	Each	1	$ 16.58
		10	$ 13.51
		25	$ 12.46
		50	$ 11.71
		100	$ 11.02
		250	$ 10.20

Description

General part information

C90-3101F Series

2 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

C90 Circular Catalog

Datasheet

C90-25042-14S

Datasheet

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet

Specification	C90-3101F10SL-4P	C90-3101F Series

Applications	Industrial, Automotive	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy	Black Zinc Cobalt, Aluminum Alloy
Cable Opening	-	10.3 mm
Cable Opening	-	0.406 in
Cable Opening [diameter]	7.14 mm	7.14 mm
Cable Opening [diameter]	0.281 in	0.281 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	10SL-4	10SL-4, 14S-6, 10SL-3, 14S-2
Shielding	Unshielded	Unshielded
Voltage Rating	700 VDC, 500 VAC	200 - 700 VDC
