C90-3101F10SL-4S

Active

Harwin Inc.

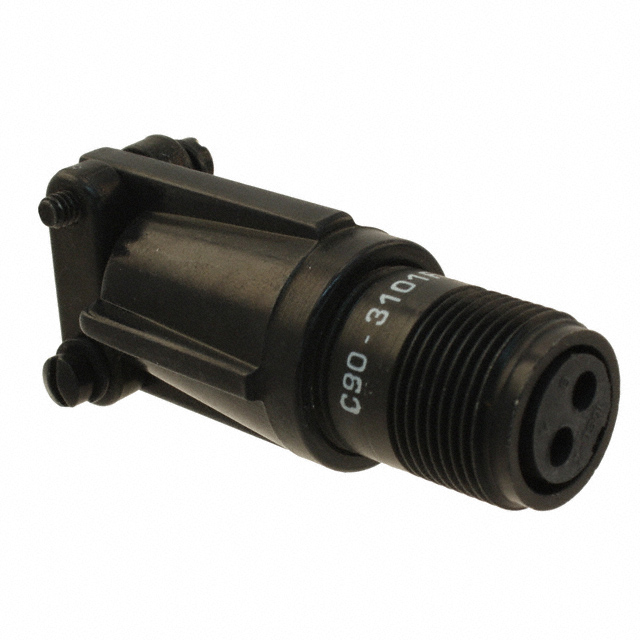

CIRCULAR CONNECTOR, CABLE MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular Catalog C90-25042-14S +4

C90-3101F10SL-4S

Active

Harwin Inc.

CIRCULAR CONNECTOR, CABLE MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsC90 Circular Catalog C90-25042-14S +4

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.48
		10	$ 16.88
		25	$ 16.00
		50	$ 15.77
		100	$ 13.91
		250	$ 12.98
		500	$ 12.71
Newark	Each	100	$ 15.98
		250	$ 14.60
		500	$ 13.59
		1000	$ 12.49
		2500	$ 12.22

Description

General part information

C90-3101F Series

2 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

C90 Circular Catalog

Datasheet

C90-25042-14S

Datasheet

Specification	C90-3101F10SL-4S	C90-3101F Series

Applications	Industrial, Automotive	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy	Black Zinc Cobalt, Aluminum Alloy
Cable Opening	-	10.3 mm
Cable Opening	-	0.406 in
Cable Opening [diameter]	7.14 mm	7.14 mm
Cable Opening [diameter]	0.281 in	0.281 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	13 A
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black Zinc Cobalt Alloy	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	10SL-4	10SL-4, 14S-6, 10SL-3, 14S-2
Shielding	Unshielded	Unshielded
Voltage Rating	700 VDC, 500 VAC	200 - 700 VDC
