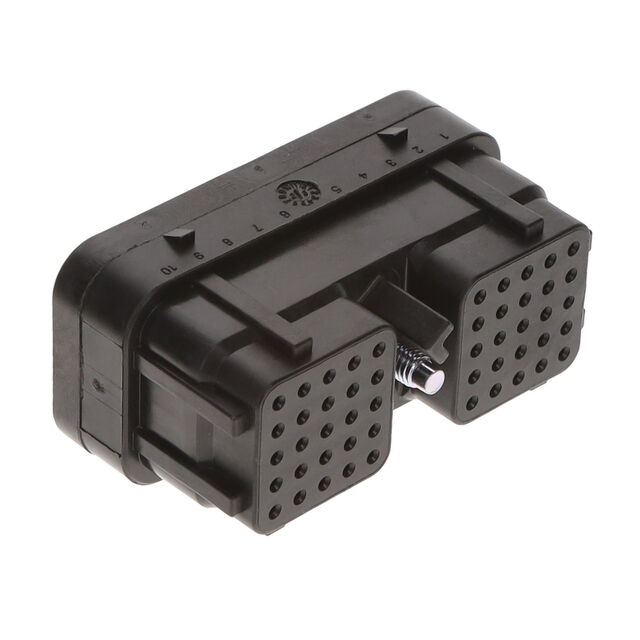

DRC26-50S04

Active

TE Connectivity Raychem Cable Protection

CONN FML HSG 50POS 4.42MM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN FML HSG 50POS 4.42MM

Technical Specifications

Parameters and characteristics for this part

Specification	DRC26-50S04

Color	Black
Connector Type	Housing for Female Insert
Contact Termination	Crimp
Contact Type	Female Socket
Features	IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Surface Mount
Note	Contacts Not Included
Number of Positions	50
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	4.42 mm
Pitch [x]	0.174 in

Part	Features	Number of Positions	Number of Rows	Contact Termination	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Note	Insulation Material	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Fastening Type
TE Connectivity Raychem Cable Protection DRC26-50S05	Cap (Cover) Dust IP68	50	5	Crimp	Free Hanging (In-Line)	Female Socket	-55 °C	125 °C	Black	Plug	Contacts Not Included	Plastic
TE Connectivity Raychem Cable Protection DRC26-50S04	IP68	50	5	Crimp	Surface Mount	Female Socket	-55 °C	125 °C	Black	Housing for Female Insert	Contacts Not Included	Glass Filled Nylon Polyamide (PA)	4.42 mm	0.174 in
TE Connectivity Raychem Cable Protection DRC26-60S06	IP68	60	6	Crimp	Free Hanging (In-Line)	Female Socket	-55 °C	125 °C	Black	Receptacle		Glass Filled Nylon Polyamide (PA)	4.42 mm	0.174 in	0.173 in	4.4 mm	Locking Ramp
TE Connectivity Raychem Cable Protection DRC26-60S07		60	6	Crimp	Free Hanging (In-Line)	Male Pin			Black	Plug		Polyamide (PA46) Nylon 4/6					Push-Pull
TE Connectivity Raychem Cable Protection DRC26-38S02-P017	IP68	38	5	Crimp	Free Hanging (In-Line)	Female Socket	-55 °C	125 °C	Black	Plug		Polyphenylene Sulfide (PPS) Glass Filled	4.42 mm	0.174 in	0.174 in	4.42 mm
TE Connectivity Raychem Cable Protection DRC26-60S05		60	6	Crimp	Free Hanging (In-Line)	Female Socket	-55 °C	125 °C	Black	Plug		Glass Filled Nylon Polyamide (PA)	4.42 mm	0.174 in	0.174 in	4.42 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Rectangular Connectors - Housings Housing for Female Insert Black 0.174" (4.42mm)
