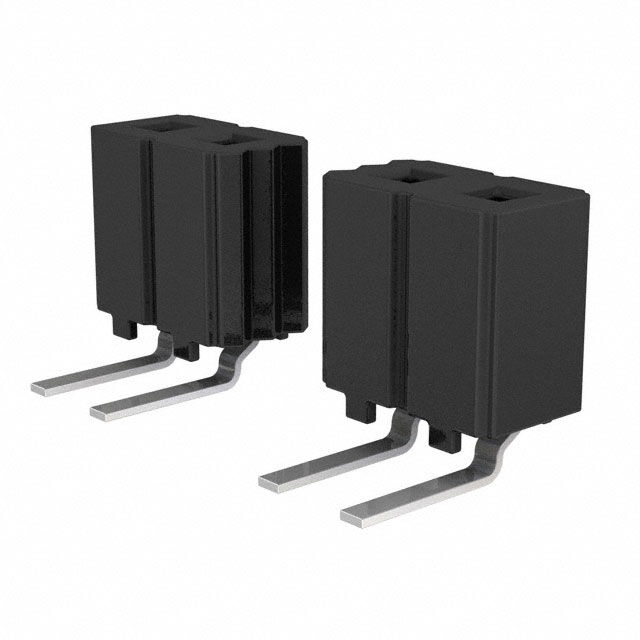

CES-106-02-T-S-RA

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CES Series Other Related Documents 01 +1

CES-106-02-T-S-RA

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB R/A

Deep-Dive with AI

DocumentsDatasheet CES Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-106-02-T-S-RA

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

CES-106 Series

Part	Insulation Material	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Shape	Number of Rows	Contact Finish - Post	Connector Type	Number of Positions	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
Samtec Inc. CES-106-02-T-S	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All	5.66 mm	0.223 in	Solder	Square	1	Tin	Receptacle	6	Phosphor Bronze	Female Socket	105 ░C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm
Samtec Inc. CES-106-01-T-S	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	1	Tin	Receptacle	6	Phosphor Bronze	Female Socket	105 ░C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm
Samtec Inc. CES-106-01-S-S	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	1	Tin	Receptacle	6	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	30 Áin	0.76 Ám	Gold
Samtec Inc. CES-106-01-G-S	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	1	Gold	Receptacle	6	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	10 çin	0.25 çm	Gold	0.099 µm	3.9 µin
Samtec Inc. CES-106-01-L-D	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	2	Tin	Receptacle	12	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	10 çin	0.25 çm	Gold			2.54 mm	0.1 in
Samtec Inc. CES-106-01-G-D	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	2	Gold	Receptacle	12	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	20 µin	0.51 µm	Gold	0.076 µm	3 µin	2.54 mm	0.1 in
Samtec Inc. CES-106-02-T-S-RA	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	UL94 V-0	All	3.05 mm	0.12 in	Solder	Square	2	Tin	Receptacle	12	Phosphor Bronze	Female Socket	105 ░C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm								2.54 mm	0.1 in	3.05 mm	0.12 in
Samtec Inc. CES-106-01-F-D	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	2	Tin	Receptacle	12	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	3 µin	0.076 µm	Gold			2.54 mm	0.1 in
Samtec Inc. CES-106-02-G-D	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All	5.66 mm	0.223 in	Solder	Square	2	Gold	Receptacle	12	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm			20 µin	0.51 µm	Gold	0.076 µm	3 µin	2.54 mm	0.1 in
Samtec Inc. CES-106-01-F-S	Polybutylene Terephthalate (PBT)	Through Hole	UL94 V-0	All			Solder	Square	1	Tin	Receptacle	6	Phosphor Bronze	Female Socket	125 °C	-55 °C	Push-Pull	Black	0.1 in	2.54 mm	0.128 "	3.25 mm	3 µin	0.076 µm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	37	$ 0.83
