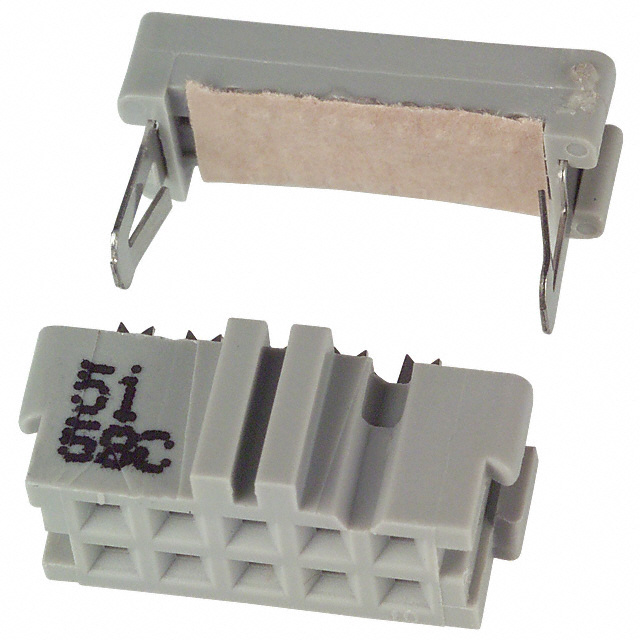

3473-6600

Active

3M (TC)

CONN IDC CONNECTOR SKT 10 POS 1.27MM IDT RA CABLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

CONN IDC CONNECTOR SKT 10 POS 1.27MM IDT RA CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Number of Positions	Connector Type	Wire Type	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type
3M (TC) 3473-6600	Gold	26 AWG	28 AWG	Solid Stranded	10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through Polarizing Key	Free Hanging (In-Line)
3M (TC) 3473-6010	Gold	26 AWG	28 AWG	Solid Stranded	10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Strain Relief	Free Hanging (In-Line)
3M (TC) 3473-G000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through	Free Hanging (In-Line)
3M (TC) 3473-6000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through	Free Hanging (In-Line)
3M (TC) 3473-7000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Closed End	Free Hanging (In-Line)
3M (TC) 3473-7610	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Closed End Polarizing Key Strain Relief	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG, Stranded or Solid
