3473-6010

Active

3M (TC)

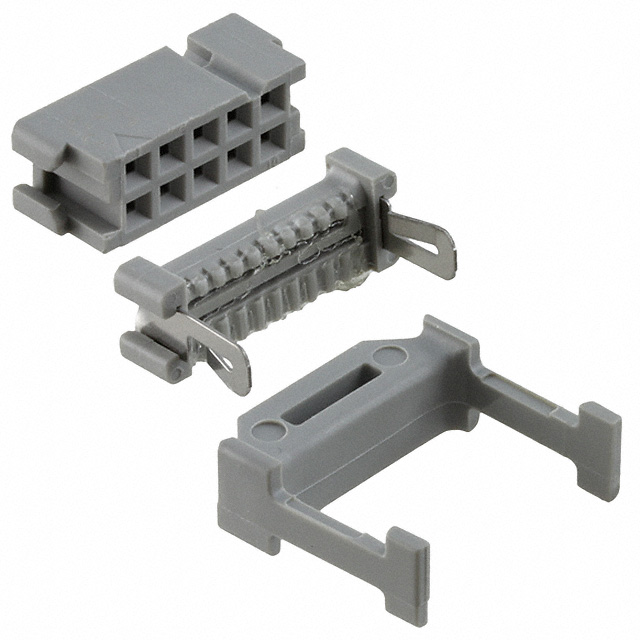

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

3473-6010

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3473-6010

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG
Wire Type	Ribbon Cable

3473 Series

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Number of Positions	Connector Type	Wire Type	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type
3M (TC) 3473-6600	Gold	26 AWG	28 AWG	Solid Stranded	10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through Polarizing Key	Free Hanging (In-Line)
3M (TC) 3473-6010	Gold	26 AWG	28 AWG	Solid Stranded	10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Strain Relief	Free Hanging (In-Line)
3M (TC) 3473-G000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through	Free Hanging (In-Line)
3M (TC) 3473-6000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Feed Through	Free Hanging (In-Line)
3M (TC) 3473-7000	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Closed End	Free Hanging (In-Line)
3M (TC) 3473-7610	Gold				10	Receptacle	Ribbon Cable	Female Socket	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Gray	IDC	0.76 Ám	30 Áin	Closed End Polarizing Key Strain Relief	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.82
		10	$ 3.47
		25	$ 3.29
		50	$ 3.21
		100	$ 3.06
		300	$ 2.67
		600	$ 2.60
		1200	$ 2.22
		2700	$ 2.06
Newark	Each	1	$ 3.72
		10	$ 3.57
		25	$ 3.29
		50	$ 3.11
		100	$ 2.97
		250	$ 2.62
		500	$ 2.54
		1000	$ 2.16

Description

General part information

3473 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
