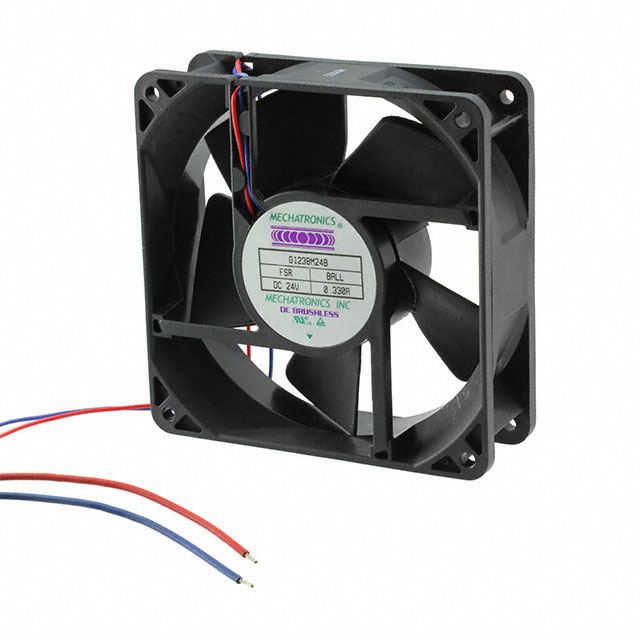

G1238M24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

G1238M24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G1238M24B-FSR

Air Flow	125 CFM
Air Flow	3.5 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.33 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	43 dB
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	335.66 g
Weight	0.74 lb
Width [y]	38 mm

G1238 Series

Part	Fan Type	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Noise	RPM	Features	Current Rating (Amps)	Voltage - Rated	Bearing Type	Width [y]	Ingress Protection	Voltage - Rated [custom]	Air Flow	Air Flow
Mechatronics Bearing Group G1238M24B1-FSR-TTL	Tubeaxial	CE cUL TUV UL	125 CFM	3.5 m³/min	0.32 in H2O	79.7 Pa	3 Wire Leads	335.66 g	0.74 lb	120 mm	120 mm	Polybutylene Terephthalate (PBT)	43 dB	2800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.33 A	24 VDC	Ball	38 mm
Mechatronics Bearing Group G1238E48B1-FSR-WS-EM	Tubeaxial	CE cUL TUV UL	158 CFM	4.42 m³/min	0.49 in H2O	122.1 Pa	4 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	49 dB	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.33 A		Ball	38 mm	IP57 - Dust Protected Waterproof	48 VDC
Mechatronics Bearing Group G1238S24B1-FSR-WS	Tubeaxial	CE cUL TUV UL	88 CFM	2.46 m³/min	0.17 in H2O	42.3 Pa	4 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	34 dB(A)	2000 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.18 A	24 VDC	Ball	38 mm
Mechatronics Bearing Group G1238E12B1-FSR-WS-EM-L25	Tubeaxial	CE cUL TUV UL	158 CFM	4.42 m³/min	0.49 in H2O	122.1 Pa	3 Wire Leads	335.66 g	0.74 lb	120 mm	120 mm	Polybutylene Terephthalate (PBT)	49 dB	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	1.2 A	12 VDC	Ball	38 mm
Mechatronics Bearing Group G1238L24B-FSR-EM	Tubeaxial	CE cUL TUV UL		107 CFM	0.24 in H2O	59.8 Pa	2 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	38 dB(A)	2400 RPM	Thermal Overload Protector (TOP)	0.25 A	24 VDC	Ball	38 mm	IP57 - Dust Protected Waterproof		3 mł/min
Mechatronics Bearing Group G1238E12B1-FSR-WS	Tubeaxial	CE cUL TUV UL		4.42 m³/min	0.49 in H2O	122.1 Pa	4 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	49 dB	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	1.2 A	12 VDC	Ball	38 mm				158 CFM
Mechatronics Bearing Group G1238H48B1-FSR	Tubeaxial	CE cUL TUV UL	141.2 CFM	3.95 m³/min	0.41 in H2O	102.1 Pa	3 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	46 dB(A)	3200 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.25 A		Ball	38 mm		48 VDC
Mechatronics Bearing Group G1238M24B-FSR	Tubeaxial	CE cUL TUV UL	125 CFM	3.5 m³/min	0.32 in H2O	79.7 Pa	2 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	43 dB	2800 RPM	Thermal Overload Protector (TOP)	0.33 A	24 VDC	Ball	38 mm
Mechatronics Bearing Group G1238E48B1-FSR-WS	Tubeaxial	CE cUL TUV UL	158 CFM	4.42 m³/min	0.49 in H2O	122.1 Pa	4 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	49 dB	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	0.33 A		Ball	38 mm		48 VDC
Mechatronics Bearing Group G1238E24B-FSR	Tubeaxial	CE cUL TUV UL	158 CFM	4.42 m³/min	0.49 in H2O	122.1 Pa	2 Wire Leads	335.66 g	0.74 lb	119 mm	119 mm	Polybutylene Terephthalate (PBT)	49 dB	3600 RPM	Thermal Overload Protector (TOP)	600 mA	24 VDC	Ball	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.91
		10	$ 18.05
		25	$ 16.98
		50	$ 16.33
		100	$ 15.04
		250	$ 14.08
		500	$ 13.86

Description

General part information

G1238 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 125.0 CFM (3.50m³/min) 2 Wire Leads
