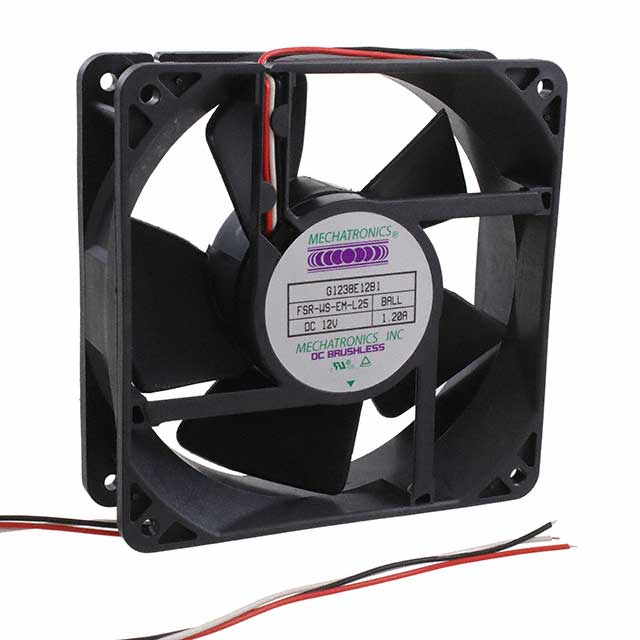

Specification	G1238E12B1-FSR-WS-EM-L25

Air Flow	158 CFM
Approval Agency	CE, TUV, cUL, UL
Bearing Type	Ball
Current Rating	1.2 A
Fan Type	Tubeaxial
Features	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Noise	49 dB
RPM	3600 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	0.49 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Weight	0.74 lb
Width	38 mm

G1238 Series

Part	Features	RPM	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Static Pressure	Voltage - Rated	Noise	Width	Bearing Type	Air Flow	Termination Leads Count	Termination Type	Termination	Fan Type	Weight	Approval Agency	Material - Frame	Current Rating	Material - Blade	Ingress Protection Description	Ingress Protection IP Rating
Mechatronics Fan Group G1238M24B-FSR-CC	Conformal Coating Thermal Overload Protector (TOP)	2800 RPM	119 mm	Square	119 mm	0.32 in H2O	24 VAC	43 dB	38 mm	Ball	125 CFM	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.33 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238M24B1-FSR-TTL	Speed Sensor (Tach) Thermal Overload Protector (TOP)	2800 RPM	120 mm	Square	120 mm	0.32 in H2O	24 VAC	43 dB	38 mm	Ball	125 CFM	3	Wire Leads	3 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.33 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238E48B1-FSR-WS-EM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	3600 RPM	119 mm	Square	119 mm	0.49 in H2O	48 VDC	49 dB	38 mm	Ball	158 CFM	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.33 A	PBT Polybutylene Terephthalate	Dust Protected Waterproof	IP57
Mechatronics Fan Group G1238E48B2-FSR	Locked Rotor Sensor Thermal Overload Protector (TOP)	3600 RPM	120 mm	Square	120 mm	0.49 in H2O	48 VDC	49 dB	38 mm	Ball	158 CFM	3	Wire Leads	3 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.33 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238S24B1-FSR-WS	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	2000 RPM	119 mm	Square	119 mm	0.17 in H2O	24 VAC	34 dB	38 mm	Ball	88 CFM	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.18 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238E24B1+6-FSR-WS	Alarm Sensor PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	3600 RPM	120 mm	Square	120 mm	0.49 in H2O	24 VAC	49 dB	38 mm	Ball	158 CFM	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	600 mA	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238E12B1-FSR-WS-EM-L25	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	3600 RPM	120 mm	Square	120 mm	0.49 in H2O	12 VAC	49 dB	38 mm	Ball	158 CFM	3	Wire Leads	3 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	1.2 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238L24B-FSR-EM	Thermal Overload Protector (TOP)	2400 RPM	119 mm	Square	119 mm	0.24 in H2O	24 VAC	38 dB	38 mm	Ball	107 CFM	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.25 A	PBT Polybutylene Terephthalate	Dust Protected Waterproof	IP57
Mechatronics Fan Group G1238E12B1-FSR-WS	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	3600 RPM	119 mm	Square	119 mm	0.49 in H2O	12 VAC	49 dB	38 mm	Ball	158 CFM	4 leads	Wire Leads	4 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	1.2 A	PBT Polybutylene Terephthalate
Mechatronics Fan Group G1238H48B1-FSR	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3200 RPM	119 mm	Square	119 mm	0.41 in H2O	48 VDC	46 dB	38 mm	Ball	141.2 CFM	3	Wire Leads	3 Wire Leads	Tubeaxial	0.74 lb	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.25 A	PBT Polybutylene Terephthalate
