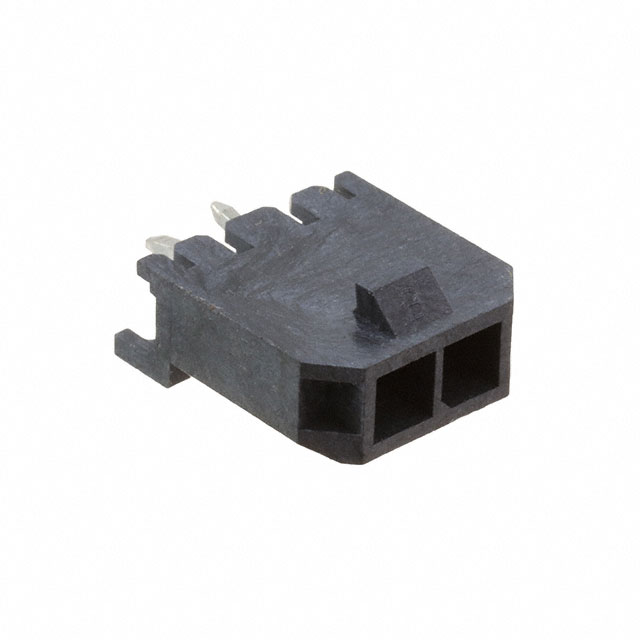

Specification	DML-1-02-A-V-T-A

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

DML-1 Series

Part	Style	Insulation Color	Insulation Material	Number of Rows	Connector Type	Shrouding	Contact Shape	Mounting Type	Current Rating	Contact Material	Number of Positions	Insulation Height	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Features	Termination	Voltage Rating	Contact Type	Contact Length - Post	Current Rating
Adam Tech DML-1-04-A-H-T-A-BL	Board Cable/Wire	Black	Nylon 6T Polyamide (PA6T)	1	Header	Shrouded - 4 Wall	Square	Right Angle Through Hole	5 A	Brass	4	0.152 in	Tin	All	Locking Ramp	85 °C	-25 °C	0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in
Adam Tech DML-1-02-A-H-T-A-TSMT-T/R	Board Cable/Wire	Black	Nylon 6T Polyamide (PA6T)	1	Header	Shrouded - 4 Wall	Square	Surface Mount	5 A	Brass	2	0.172 in	Tin	All	Locking Ramp	85 °C	-25 °C	0.118 in	UL94 V-0	Tin	Solder Retention	Solder	250 V	Male Pin
Adam Tech DML-1-02-A-V-T-A-SBL	Board Cable/Wire	Black	Thermoplastic	1	Header	Shrouded - 4 Wall	Square	Through Hole	0 A	Brass	2	0.39 in	Tin	All	Locking Ramp			0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-03-A-H-T-A-TSMT-T/R	Board Cable/Wire	Black	Nylon 6T Polyamide (PA6T)	1	Header	Shrouded - 4 Wall	Square	Surface Mount	5 A	Brass	3	0.172 in	Tin	All	Locking Ramp	85 °C	-25 °C	0.118 in	UL94 V-0	Tin	Solder Retention	Solder	250 V	Male Pin
Adam Tech DML-1-03-A-V-T-A-SBL	Board Cable/Wire	Black	Thermoplastic	1	Header	Shrouded - 4 Wall	Square	Through Hole	0 A	Brass	3	0.39 in	Tin	All	Locking Ramp			0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-05-A-H-T-A	Board Cable/Wire	Black	Thermoplastic	1	Header	Shrouded - 4 Wall	Square	Right Angle Through Hole	5 A	Brass	5	0.172 in	Tin	All	Locking Ramp			0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in
Adam Tech DML-1-04-A-H-T-A-TSMT-T/R	Board Cable/Wire	Black	Nylon 6T Polyamide (PA6T)	1	Header	Shrouded - 4 Wall	Square	Surface Mount	5 A	Brass	4	0.172 in	Tin	All	Locking Ramp	85 °C	-25 °C	0.118 in	UL94 V-0	Tin	Solder Retention	Solder	250 V	Male Pin
Adam Tech DML-1-02-A-V-T-A	Board Cable/Wire	Black	Thermoplastic	1	Header	Shrouded - 4 Wall	Square	Through Hole	0 A	Brass	2		Tin	All	Locking Ramp			0.118 in	UL94 V-0	Tin		Solder	250 V	Male Pin	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-02-A-H-T-A-BL	Board Cable/Wire	Black	Nylon 6T Polyamide (PA6T)	1	Header	Shrouded - 4 Wall	Square	Right Angle Through Hole	5 A	Brass	2	0.152 in	Tin	All	Locking Ramp	85 °C	-25 °C	0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in
Adam Tech DML-1-02-A-H-T-A	Board Cable/Wire	Black	Thermoplastic	1	Header	Shrouded - 4 Wall	Square	Right Angle Through Hole	5 A	Brass	2	0.172 in	Tin	All	Locking Ramp			0.118 in	UL94 V-0	Tin	Board Lock	Solder	250 V	Male Pin	0.125 in
