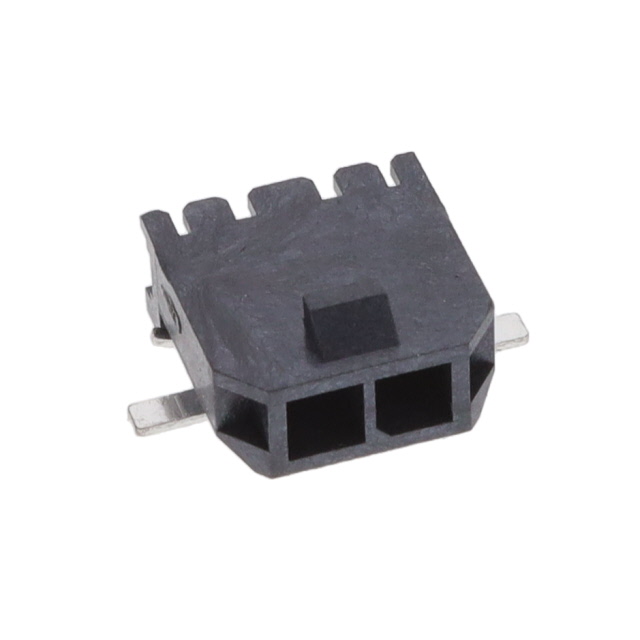

DML-1-02-A-H-T-A-TSMT-T/R
ActiveAdam Tech
CONN HEADER SMD 2POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DML-1-02-A-H-T-A-TSMT-T/R
ActiveAdam Tech
CONN HEADER SMD 2POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML-1-02-A-H-T-A-TSMT-T/R |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 4.37 mm |
| Insulation Height | 0.172 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
DML-1 Series
| Part | Features | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish - Post | Number of Positions | Insulation Height | Insulation Height | Contact Shape | Termination | Number of Positions Loaded | Shrouding | Fastening Type | Contact Type | Insulation Material | Pitch - Mating | Pitch - Mating | Mounting Type | Style | Number of Rows | Material Flammability Rating | Insulation Color | Current Rating (Amps) | Connector Type | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Solder Retention | 250 VAC | -25 °C | 85 °C | Brass | Tin | 2 | 4.37 mm | 0.172 " | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Surface Mount | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | |||||
Adam Tech | 250 VAC | Brass | Tin | 2 | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Thermoplastic | 0.118 in | 3 mm | Through Hole | Board to Cable/Wire | 1 | UL94 V-0 | Black | Header | 9.91 mm | 0.39 in | 3.18 mm | 0.125 in | Varies by Wire Gauge | ||||||
Adam Tech | Solder Retention | 250 VAC | -25 °C | 85 °C | Brass | Tin | 4.37 mm | 0.172 " | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Surface Mount | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | ||||||
Adam Tech | 250 VAC | Brass | Tin | 4.37 mm | 0.172 " | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Thermoplastic | 0.118 in | 3 mm | Through Hole Right Angle | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | 3.18 mm | 0.125 in | |||||||
Adam Tech | Solder Retention | 250 VAC | -25 °C | 85 °C | Brass | Tin | 4 | 4.37 mm | 0.172 " | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Surface Mount | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | |||||
Adam Tech | 250 VAC | Brass | Tin | 2 | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Thermoplastic | 0.118 in | 3 mm | Through Hole | Board to Cable/Wire | 1 | UL94 V-0 | Black | Header | 3.18 mm | 0.125 in | Varies by Wire Gauge | ||||||||
Adam Tech | 250 VAC | -25 °C | 85 °C | Brass | Tin | 2 | 3.85 mm | 0.152 in | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Through Hole Right Angle | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | 3.18 mm | 0.125 in | ||||
Adam Tech | Solder Retention | 250 VAC | -25 °C | 85 °C | Brass | Tin | 4.37 mm | 0.172 " | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Surface Mount | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | ||||||
Adam Tech | 250 VAC | -25 °C | 85 °C | Brass | Tin | 3.85 mm | 0.152 in | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Nylon 6T Polyamide (PA6T) | 0.118 in | 3 mm | Through Hole Right Angle | Board to Cable/Wire | 1 | UL94 V-0 | Black | 5 A | Header | 3.18 mm | 0.125 in | |||||
Adam Tech | 250 VAC | Brass | Tin | Square | Solder | All | Shrouded - 4 Wall | Locking Ramp | Male Pin | Thermoplastic | 0.118 in | 3 mm | Through Hole | Board to Cable/Wire | 1 | UL94 V-0 | Black | Header | 3.18 mm | 0.125 in | Varies by Wire Gauge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 10 | $ 1.13 | |||
| 100 | $ 0.87 | |||
| Digi-Reel® | 1 | $ 1.48 | ||
| 10 | $ 1.13 | |||
| 100 | $ 0.87 | |||
| Tape & Reel (TR) | 400 | $ 0.50 | ||
| 800 | $ 0.46 | |||
| 1200 | $ 0.44 | |||
| 2000 | $ 0.42 | |||
| 2800 | $ 0.41 | |||
| 4000 | $ 0.39 | |||
| 10000 | $ 0.36 | |||
| 20000 | $ 0.34 | |||
Description
General part information
DML-1 Series
Connector Header Surface Mount 2 position 0.118" (3.00mm)
