3539/10 300

Active

3M (TC)

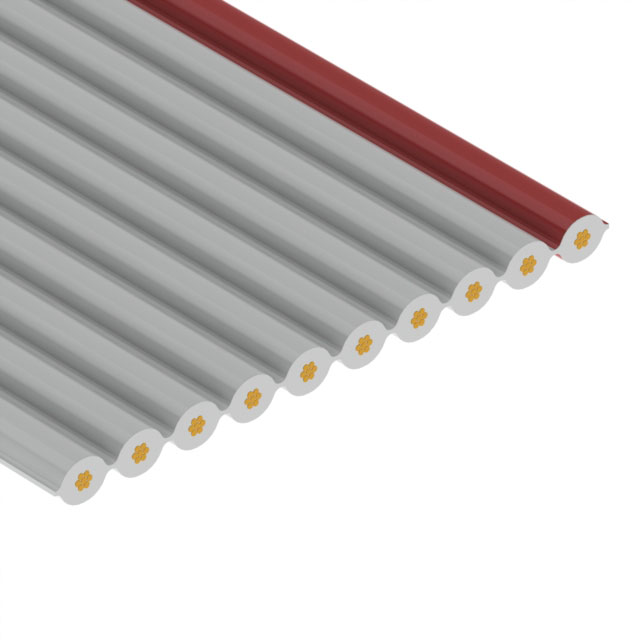

CBL RIBN 10COND 0.05 GRAY 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCable Selection Guide cable Mating Guide

3539/10 300

Active

3M (TC)

CBL RIBN 10COND 0.05 GRAY 100'

Deep-Dive with AI

DocumentsCable Selection Guide cable Mating Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3539/10 300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	40 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	15.24 m, 91.44 m, 7.62 m
Length	50 ft, 300 ft, 25 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3539 Series

Part	Length	Length	Cable Type	Jacket Color	Ratings	First Conductor Mark	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Shielding	Wire Gauge	Number of Conductors	Insulation Resistance	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width	Conductor Material	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 3539/50	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	50	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	63.5 mm	2.5 "	Copper Tinned
3M (TC) 3539/50 100			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	50	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	63.5 mm	2.5 "	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/37			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	37	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	46.99 mm	1.85 in	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/34SF			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	34	10 GOhm	19 Strands	40 AWG	300 V	Splice Free Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	1.7 in	43.18 mm
3M (TC) 3539/20 300	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	20	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	1 in		Copper Tinned					25.4 mm
3M (TC) 3539/30			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	30	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	1.5 in	38.1 mm
3M (TC) 3539/10 300	7.62 m 15.24 m 91.44 m	25 ft 50 ft 300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	10	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m				0.5 "	12.7 mm
3M (TC) 3539/60			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	60	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	76.2 mm	3 in	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/64			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	64	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	3.2 in	81.28 mm
3M (TC) 3539/06	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	6	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.22
		1	$ 98.82
		1	$ 187.26
		5	$ 148.81
		5	$ 78.84
		5	$ 42.32
		10	$ 135.28
		10	$ 38.39
		10	$ 71.35
		25	$ 33.75
		25	$ 118.91
		25	$ 62.79
		50	$ 30.54
		50	$ 56.72
		50	$ 107.51
		100	$ 92.56
		100	$ 27.68
		100	$ 51.73
	Spool	300	$ 2.18
		600	$ 1.97
		1500	$ 1.78
		3000	$ 1.57

Description

General part information

3539 Series

Flat Ribbon Cable Gray 10 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)

Documents

Technical documentation and resources

Cable Selection Guide

Datasheet

cable Mating Guide

Datasheet
