3539/37

Active

3M (TC)

CBL RIBN 37COND 0.05 GRAY

Deep-Dive with AI

DocumentsCable Selection Guide cable Mating Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3539/37

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	40 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	37
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	1.85 in
Ribbon Width	46.99 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3539 Series

Part	Length	Length	Cable Type	Jacket Color	Ratings	First Conductor Mark	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Shielding	Wire Gauge	Number of Conductors	Insulation Resistance	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Ribbon Width	Ribbon Width	Conductor Material	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]
3M (TC) 3539/50	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	50	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	63.5 mm	2.5 "	Copper Tinned
3M (TC) 3539/50 100			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	50	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	63.5 mm	2.5 "	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/37			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	37	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	46.99 mm	1.85 in	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/34SF			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	34	10 GOhm	19 Strands	40 AWG	300 V	Splice Free Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	1.7 in	43.18 mm
3M (TC) 3539/20 300	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	20	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	1 in		Copper Tinned					25.4 mm
3M (TC) 3539/30			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	30	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	1.5 in	38.1 mm
3M (TC) 3539/10 300	7.62 m 15.24 m 91.44 m	25 ft 50 ft 300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	10	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m				0.5 "	12.7 mm
3M (TC) 3539/60			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	60	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in	76.2 mm	3 in	Copper Tinned	100 ft	30.48 m
3M (TC) 3539/64			Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	64	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned	100 ft	30.48 m	3.2 in	81.28 mm
3M (TC) 3539/06	91.44 m	300 ft	Flat Cable	Gray	UL Style 2651	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	Unshielded	28 AWG	6	10 GOhm	19 Strands	40 AWG	300 V	Zippable	-20 C	105 ░C	0.89 mm	0.035 in			Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 3.47

Description

General part information

3539 Series

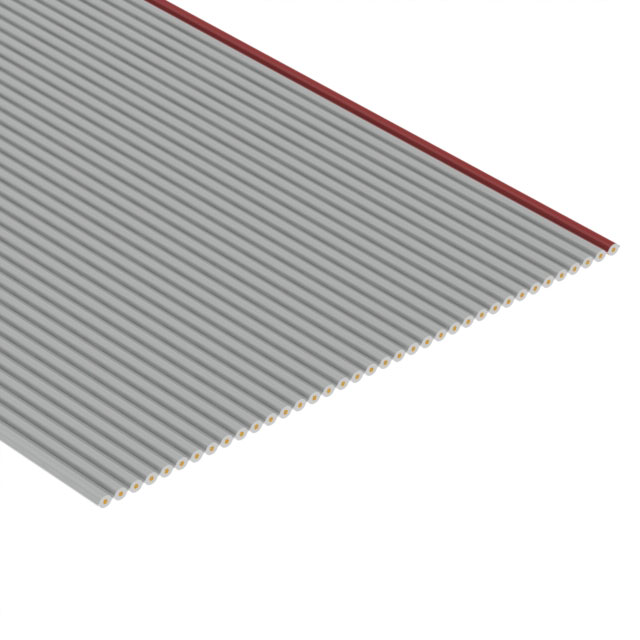

Flat Ribbon Cable Gray 37 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
