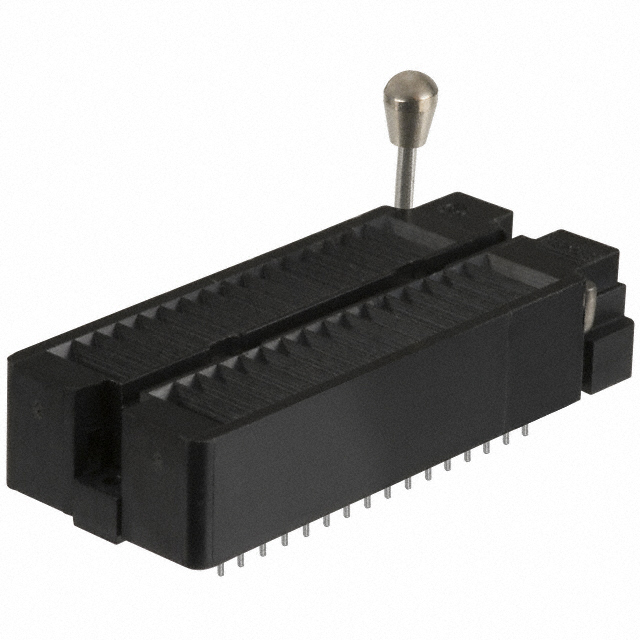

32-6554-10
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 32POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
32-6554-10
ActiveAries Electronics
CONN IC DIP SOCKET ZIF 32POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 32-6554-10 |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 x 16 |
| Number of Positions or Pins (Grid) [custom] | 32 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.11 in |
| Termination Post Length | 2.78 mm |
| Type | 15.24 mm |
| Type | DIP, ZIF (ZIP) |
| Type | 0.6 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.20 | |
| 16 | $ 14.04 | |||
| 32 | $ 13.31 | |||
| 56 | $ 13.12 | |||
| 104 | $ 11.57 | |||
| 256 | $ 10.80 | |||
| 504 | $ 10.57 | |||
Description
General part information
32-6554 Series
32 (2 x 16) Pos DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
