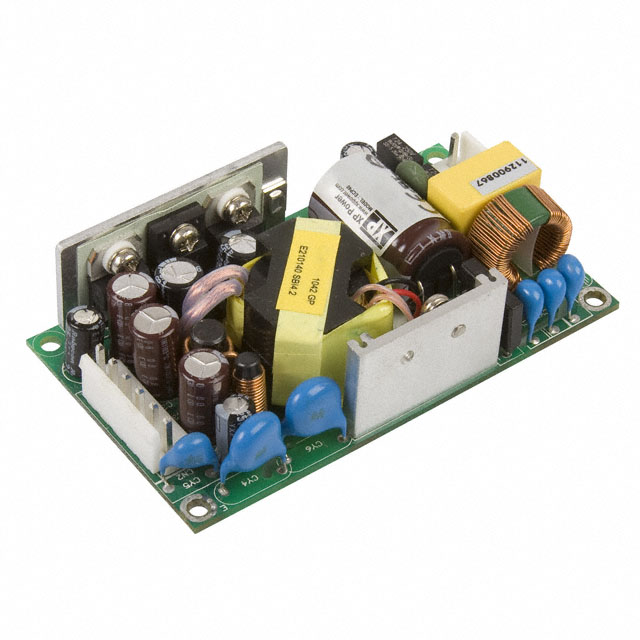

ECP40UD01

Active

XP POWER

AC/DC CONVERTER 5V 12V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECP40 Series CB Report +1

ECP40UD01

Active

XP POWER

AC/DC CONVERTER 5V 12V 40W

Deep-Dive with AI

DocumentsDatasheet ECP40 Series CB Report +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECP40UD01

Applications	ITE (Commercial), Medical
Approval Agency	CB, TUV
Current - Output 1	5 A
Current - Output 2	2 A
Efficiency	89 %
Features	Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	40 W
Size / Dimension [x]	3.5 in, 88.9 mm
Size / Dimension [y]	50.8 mm, 2 in
Size / Dimension [z]	26 mm, 1.01 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

ECP40 Series

Part	Standard Number	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Number of Outputs	Features	Current - Output 1	Applications	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Current - Output 2	Approval Agency	Voltage - Output 3	Current - Output 3	Current - Output 1 [custom]
XP POWER ECP40US24	62368-1	90 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	1.67 A	ITE (Commercial) Medical	Open Frame	24 V	-10 °C	70 °C
XP POWER ECP40US48	62368-1	92 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	840 mA	ITE (Commercial) Medical	Open Frame	48 V	-10 °C	70 °C
XP POWER ECP40UD01	62368-1	89 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	2	Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	12 V	2 A	CB TUV
XP POWER ECP40UD03	62368-1	90 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	2	Adjustable Output Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	24 V	1 A	CB TUV
XP POWER ECP40UT01	62368-1	89 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	3	Adjustable Output Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	12 V	2 A	CB TUV	-12 V	500 mA
XP POWER ECP40US30	62368-1	91 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input		ITE (Commercial) Medical	Open Frame	30 V	-10 °C	70 °C						1.34 A
XP POWER ECP40US18	62368-1	90 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	2.22 A	ITE (Commercial) Medical	Open Frame	18 V	-10 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 54.72
		5	$ 53.08
		10	$ 51.44
		25	$ 49.25
		100	$ 45.96
		540	$ 45.96
