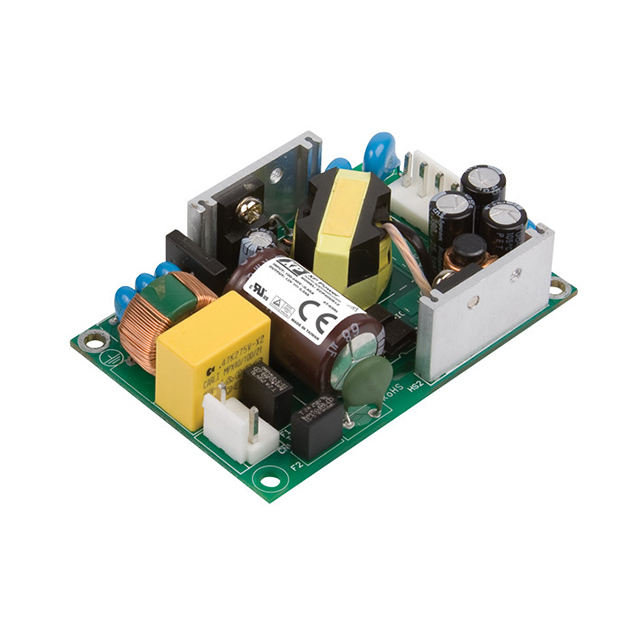

ECP40US30

Active

XP POWER

AC/DC CONVERTER 30V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECP40US30

Active

XP POWER

AC/DC CONVERTER 30V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECP40US30

Applications	ITE (Commercial), Medical
Current - Output 1 [custom]	1.34 A
Efficiency	91 %
Features	PFC, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	40 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	0.91 in
Size / Dimension [z]	23.1 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	30 V

ECP40 Series

Part	Standard Number	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Number of Outputs	Features	Current - Output 1	Applications	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Current - Output 2	Approval Agency	Voltage - Output 3	Current - Output 3	Current - Output 1 [custom]
XP POWER ECP40US24	62368-1	90 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	1.67 A	ITE (Commercial) Medical	Open Frame	24 V	-10 °C	70 °C
XP POWER ECP40US48	62368-1	92 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	840 mA	ITE (Commercial) Medical	Open Frame	48 V	-10 °C	70 °C
XP POWER ECP40UD01	62368-1	89 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	2	Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	12 V	2 A	CB TUV
XP POWER ECP40UD03	62368-1	90 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	2	Adjustable Output Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	24 V	1 A	CB TUV
XP POWER ECP40UT01	62368-1	89 %	40 W	1.01 in 26 mm		3.5 in 88.9 mm	2 in 50.8 mm			4000 V	Chassis Mount	3	Adjustable Output Universal Input	5 A	ITE (Commercial) Medical	Open Frame	5 V	-20 °C	70 °C	12 V	2 A	CB TUV	-12 V	500 mA
XP POWER ECP40US30	62368-1	91 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input		ITE (Commercial) Medical	Open Frame	30 V	-10 °C	70 °C						1.34 A
XP POWER ECP40US18	62368-1	90 %	40 W	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	4000 V	Chassis Mount	1	PFC Universal Input	2.22 A	ITE (Commercial) Medical	Open Frame	18 V	-10 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.51
		5	$ 47.05
		10	$ 45.60
		25	$ 43.66
		100	$ 40.75

Description

General part information

ECP40 Series

Open Frame AC DC Converters 1 Output 30V 85 ~ 264 VAC Input
