858-005-203RLS4
ActiveMH Connectors

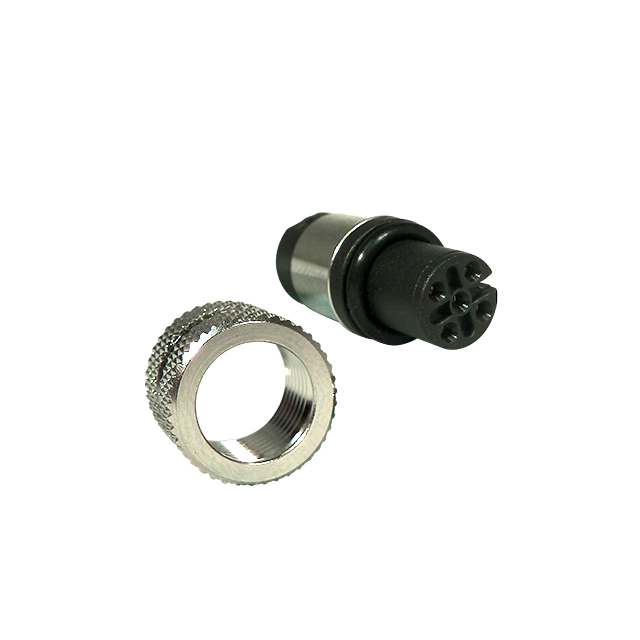

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 5 POSITIONS, SOLDER SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
858-005-203RLS4
ActiveMH Connectors
SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 5 POSITIONS, SOLDER SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 858-005-203RLS4 |
|---|---|
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.67 | |
| 10 | $ 10.34 | |||
| 25 | $ 9.94 | |||
| 40 | $ 9.54 | |||
| 100 | $ 9.01 | |||
| 300 | $ 8.22 | |||
| 500 | $ 7.69 | |||
| 1000 | $ 7.05 | |||
Description
General part information
858-005 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
