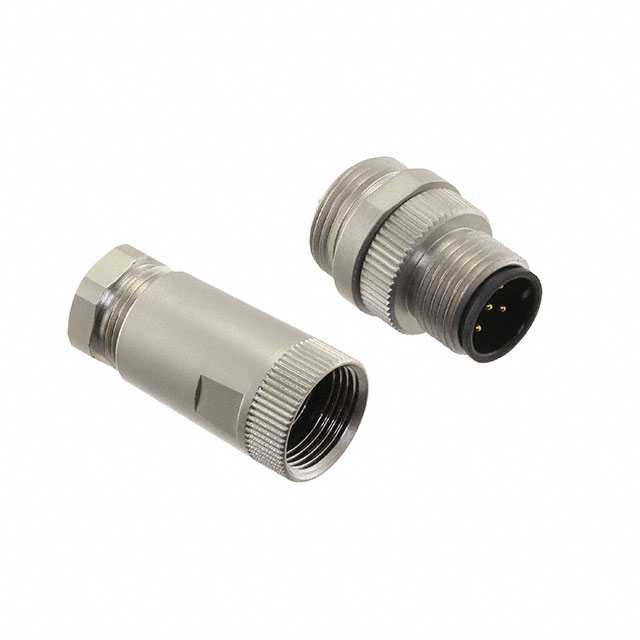

858-005-103RKT4

Active

MH Connectors

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

858-005-103RKT4

Active

MH Connectors

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	858-005-103RKT4

Backshell Material, Plating	Aluminum Alloy, Nickel
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Strain Relief, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	M12-5
Voltage Rating	60 VDC

858-005 Series

Part	Color	Primary Material	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Finish	Voltage Rating	Contact Finish Thickness - Mating	Current Rating (Amps)	Material Flammability Rating	Shell Material	Orientation	Insert Material	Contact Material	Ingress Protection	Contact Finish - Mating	Mounting Type	Shell Size - Insert	Shielding	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
MH Connectors 858-005-203RKT1	Silver	Metal	Aluminum Alloy Nickel	85 °C	-40 °C	Female Sockets Plug	Nickel	60 VDC	Flash	4 A	UL94 V-0	Aluminum Alloy	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5
MH Connectors 858-005-103RSS1	Silver	Metal		85 °C	-40 °C	Male Pins Receptacle	Nickel	60 VDC	Flash	4 A	UL94 V-0	Brass	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5	Shielded	10 mm	0.394 in
MH Connectors 858-005-103RSS4	Silver	Metal		85 °C	-40 °C	Male Pins Receptacle	Nickel	60 VDC		4 A	UL94 V-0	Brass	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5	Shielded	10 mm	0.394 in	10 çin	0.25 çm
MH Connectors 858-005-103RKT1	Silver	Metal	Aluminum Alloy Nickel	85 °C	-40 °C	Male Pins Receptacle	Nickel	60 VDC	Flash	4 A	UL94 V-0	Aluminum Alloy	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5						Backshell Strain Relief
MH Connectors 858-005-103RKT4	Silver	Metal	Aluminum Alloy Nickel	85 °C	-40 °C	Male Pins Receptacle	Nickel	60 VDC		4 A	UL94 V-0	Aluminum Alloy	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5				10 çin	0.25 çm	Backshell Strain Relief
MH Connectors 858-005-203RLS4	Black Silver	Metal		85 °C	-40 °C	Female Sockets Plug	Nickel	60 VDC		4 A	UL94 V-0	Brass	A	Polybutylene Terephthalate (PBT)	Brass	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	M12-5	Shielded			10 çin	0.25 çm	Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.73
		10	$ 27.78
		25	$ 26.58
		50	$ 25.72
		100	$ 24.87
		250	$ 23.50

Description

General part information

858-005 Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
