ERA.3Y.425.CLL

Active

LEMO

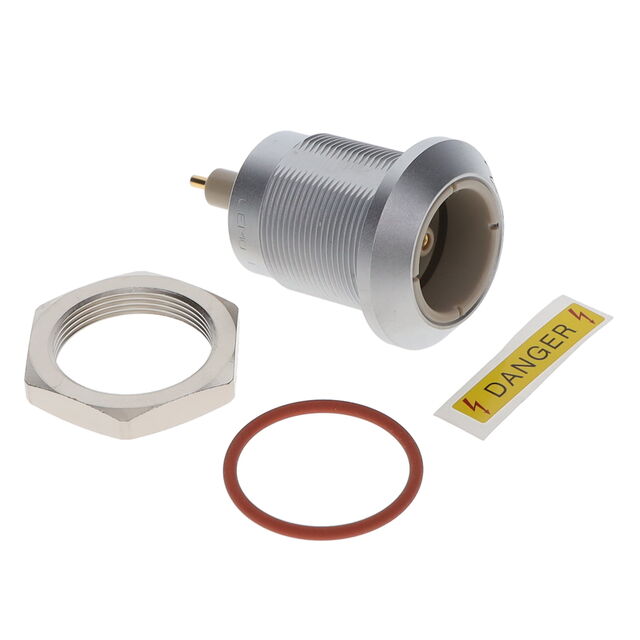

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3Y.425.CLL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.3Y.425.CLL	ERA.3Y Series

Backshell Material, Plating	-	Brass, Chrome
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	78.7 µin	59 - 78.7 Áin
Contact Finish Thickness - Mating	2 µm	1.5 - 2 Ám
Contact Material	Beryllium Copper	Brass, Beryllium Copper
Current Rating (Amps)	8 A	8 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	425	415 - 430

ERA.3Y Series

CONN RCPT MALE 1P GOLD SLDR CUP

Part	Contact Material	Features	Color	Number of Positions	Shell Size - Insert	Fastening Type	Mounting Feature	Contact Finish - Mating	Insert Material	Ingress Protection	Shell Finish	Current Rating (Amps)	Shell Material	Connector Type	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ERA.3Y.430.CLA	Brass	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám
LEMO ERA.3Y.430.CLL	Beryllium Copper	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CTL	Beryllium Copper	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CTA	Brass	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám
LEMO ERA.3Y.430.CTL	Beryllium Copper	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CLL	Beryllium Copper	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.425.CLL	Beryllium Copper		Silver	1	425	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	8 A	Brass	Receptacle, Female Sockets		230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.430.CTA	Brass	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 330.89
		10	$ 306.63
		25	$ 295.60

Description

General part information

ERA.3Y Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
