ERA.3Y.430.CLL

Active

LEMO

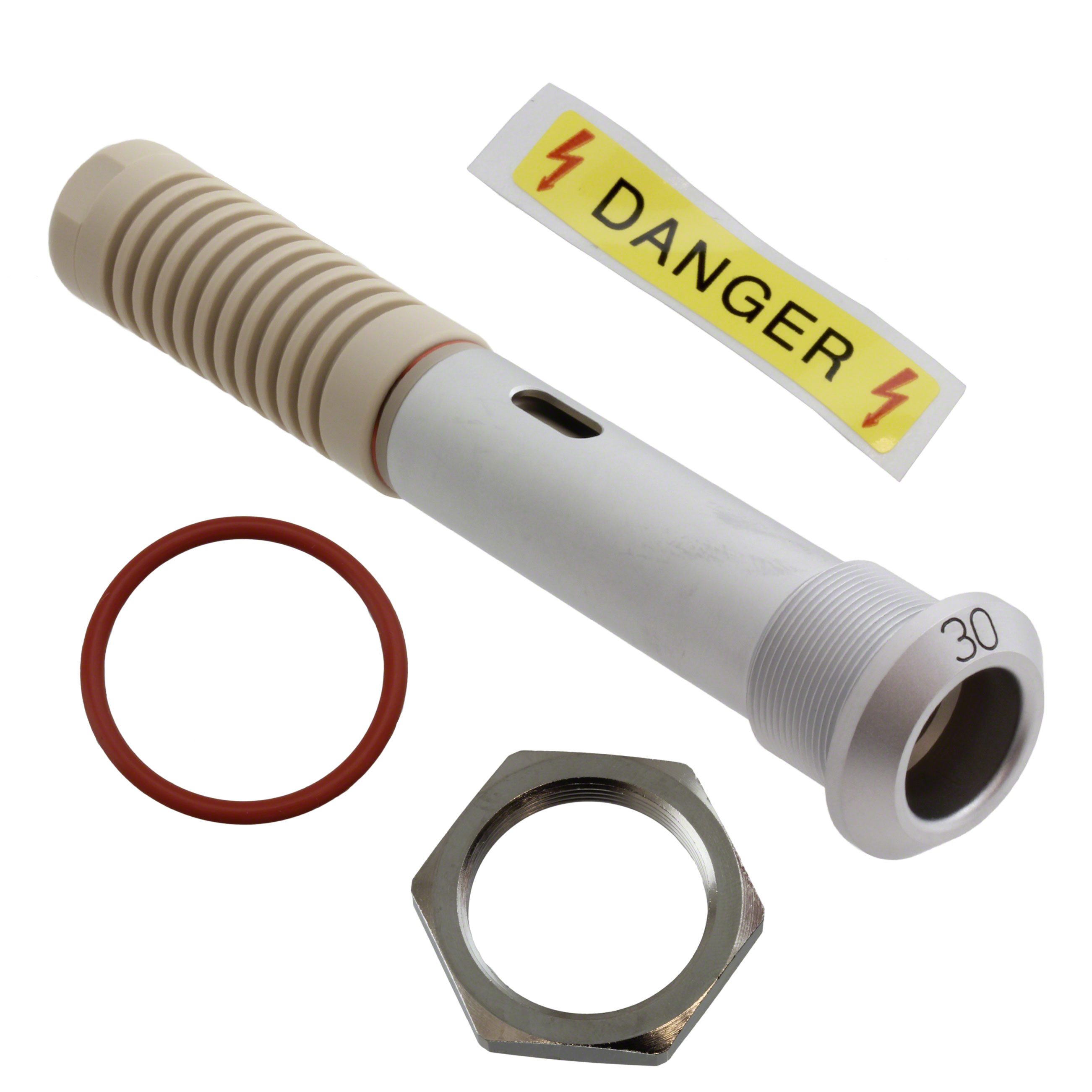

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.3Y.430.CLL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 268.76

Description

General part information

ERA.3Y Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.3Y.430.CLL	ERA.3Y Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	78.7 µin	59 - 78.7 Áin
Contact Finish Thickness - Mating	2 µm	1.5 - 2 Ám
Contact Material	Beryllium Copper	Brass, Beryllium Copper
Current Rating (Amps)	15 A	8 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	1	1
Operating Temperature [Max]	230 °C	230 °C
Operating Temperature [Min]	-55 °C	-55 °C
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	430	415 - 430

ERA.3Y Series

CONN RCPT MALE 1P GOLD SLDR CUP

Part	Contact Material	Features	Color	Number of Positions	Shell Size - Insert	Fastening Type	Mounting Feature	Contact Finish - Mating	Insert Material	Ingress Protection	Shell Finish	Current Rating (Amps)	Shell Material	Connector Type	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ERA.3Y.430.CLA	Brass	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám
LEMO ERA.3Y.430.CLL	Beryllium Copper	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CTL	Beryllium Copper	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CTA	Brass	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám
LEMO ERA.3Y.430.CTL	Beryllium Copper	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.415.CLL	Beryllium Copper	Backshell	Silver	1	415	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	15 A	Brass	Receptacle, Female Sockets	Brass, Chrome	230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.425.CLL	Beryllium Copper		Silver	1	425	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polyetheretherketone (PEEK)	IP50	Chrome	8 A	Brass	Receptacle, Female Sockets		230 °C	-55 °C	Metal	78.7 µin	2 µm
LEMO ERA.3Y.430.CTA	Brass	Backshell	Silver	1	430	Push-Pull	Bulkhead - Rear Side Nut	Gold	Polytetrafluoroethylene (PTFE)	IP50	Chrome	15 A	Brass	Male Pins, Receptacle	Brass, Chrome	230 °C	-55 °C	Metal	59 Áin	1.5 Ám
