FSM1JSSMTR

Active

TE Connectivity Raychem Cable Protection

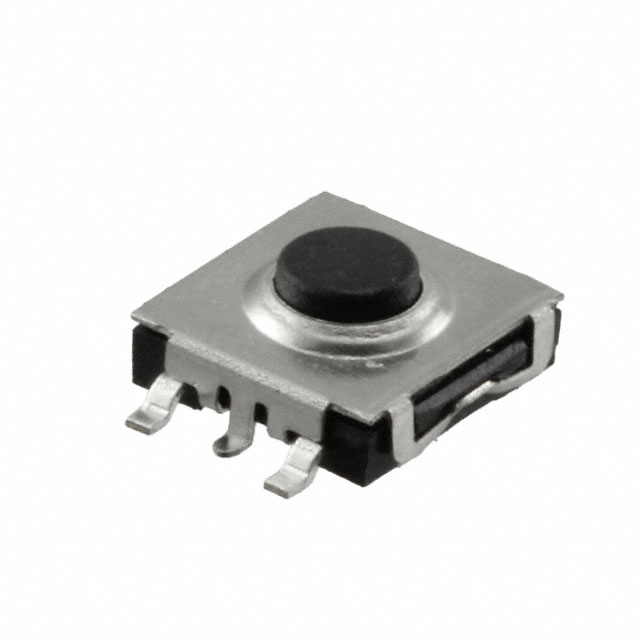

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FSM1JSSMTR

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FSM1JSSMTR

Actuator Height off PCB, Vertical	3.3 mm
Actuator Material	Thermoplastic
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Outline [x]	7.6 mm
Outline [y]	7.3 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	Gull Wing

FSM1 Series

Part	Actuator Orientation	Switch Function	Illumination	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Material	Termination Style	Contact Rating @ Voltage	Circuit	Outline [y]	Outline [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Actuator Type	Actuator Height off PCB, Vertical	Features	Switch Travel [custom]	Ingress Protection	Operating Force
TE Connectivity Raychem Cable Protection FSM1JELGTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	2 mm	Thermoplastic	Gull Wing	0.05 A 12 VDC	SPST-NO	6.2 mm	6.2 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM18J	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles		Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	85 °C	0.25 mm	Standard	8.5 mm
TE Connectivity Raychem Cable Protection FSM1JELGETR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	2 mm	Thermoplastic	Gull Wing	0.05 A 12 VDC	SPST-NO	6.2 mm	6.2 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard		Grounding Pin
TE Connectivity Raychem Cable Protection FSM1LP	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	3.1 mm	Polyphthalamide (PPA)	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard		Grounding Pin
TE Connectivity Raychem Cable Protection FSM103	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	7.28 mm	Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	12 mm	12 mm	Through Hole	-35 °C	85 °C		Plunger for Cap			0.3 mm
TE Connectivity Raychem Cable Protection FSM14JRT	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	13 mm	Nylon 6/6 Polyamide (PA66)	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	105 ░C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM14J	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	13 mm	Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	85 °C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM1JSSMTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles		Thermoplastic	Gull Wing	0.05 A 24 VDC	SPST-NO	7.3 mm	7.6 mm	Surface Mount	-35 °C	85 °C	0.35 mm	Standard	3.3 mm	Sealed - Fully		IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection FSM1LPATR	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	3.1 mm	Polyphenylene Sulfide (PPS)	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard					260 gf
TE Connectivity Raychem Cable Protection FSM1LPSTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	3.1 mm	Polyamide (PA6T) Nylon 6T	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6.2 mm	Surface Mount	-40 °C	105 ░C	0.25 mm	Standard		Grounding Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.75
		10	$ 0.72
		25	$ 0.70
		100	$ 0.61
		250	$ 0.55
		500	$ 0.51
	Digi-Reel®	1	$ 0.75
		10	$ 0.72
		25	$ 0.70
		100	$ 0.61
		250	$ 0.55
		500	$ 0.51
	Tape & Reel (TR)	1500	$ 0.46
		3000	$ 0.43
		7500	$ 0.40
		10500	$ 0.37

Description

General part information

FSM1 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
