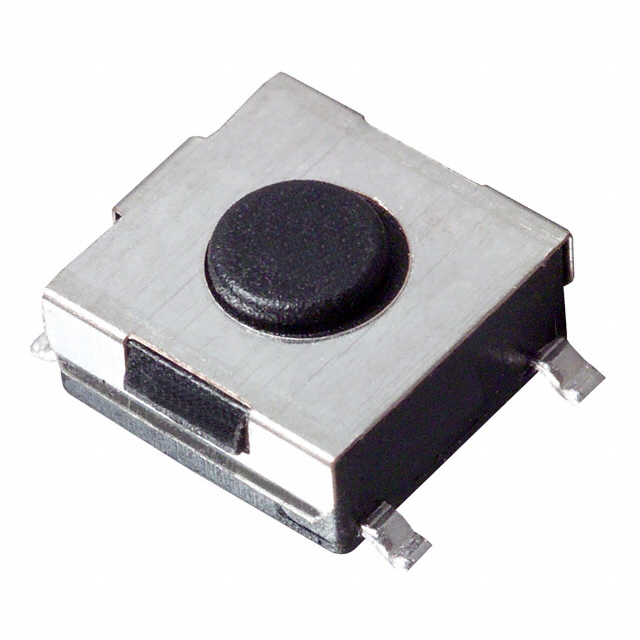

FSM1LP

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FSM1LP

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FSM1LP

Actuator Height off PCB, Vertical [z]	3.1 mm
Actuator Material	Polyphthalamide (PPA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Grounding Pin
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

FSM1 Series

Part	Actuator Orientation	Switch Function	Illumination	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Material	Termination Style	Contact Rating @ Voltage	Circuit	Outline [y]	Outline [x]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Actuator Type	Actuator Height off PCB, Vertical	Features	Switch Travel [custom]	Ingress Protection	Operating Force
TE Connectivity Raychem Cable Protection FSM1JELGTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	2 mm	Thermoplastic	Gull Wing	0.05 A 12 VDC	SPST-NO	6.2 mm	6.2 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM18J	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles		Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	85 °C	0.25 mm	Standard	8.5 mm
TE Connectivity Raychem Cable Protection FSM1JELGETR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	2 mm	Thermoplastic	Gull Wing	0.05 A 12 VDC	SPST-NO	6.2 mm	6.2 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard		Grounding Pin
TE Connectivity Raychem Cable Protection FSM1LP	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	3.1 mm	Polyphthalamide (PPA)	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard		Grounding Pin
TE Connectivity Raychem Cable Protection FSM103	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	7.28 mm	Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	12 mm	12 mm	Through Hole	-35 °C	85 °C		Plunger for Cap			0.3 mm
TE Connectivity Raychem Cable Protection FSM14JRT	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	13 mm	Nylon 6/6 Polyamide (PA66)	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	105 ░C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM14J	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	13 mm	Acetal	PC Pin	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Through Hole	-35 °C	85 °C	0.25 mm	Standard
TE Connectivity Raychem Cable Protection FSM1JSSMTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles		Thermoplastic	Gull Wing	0.05 A 24 VDC	SPST-NO	7.3 mm	7.6 mm	Surface Mount	-35 °C	85 °C	0.35 mm	Standard	3.3 mm	Sealed - Fully		IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection FSM1LPATR	Top Actuated	Off-Mom	Non-Illuminated	100000 Cycles	3.1 mm	Polyphenylene Sulfide (PPS)	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6 mm	Surface Mount	-35 °C	85 °C	0.25 mm	Standard					260 gf
TE Connectivity Raychem Cable Protection FSM1LPSTR	Top Actuated	Off-Mom	Non-Illuminated	1000000 Cycles	3.1 mm	Polyamide (PA6T) Nylon 6T	Gull Wing	0.05 A 24 VDC	SPST-NO	6 mm	6.2 mm	Surface Mount	-40 °C	105 ░C	0.25 mm	Standard		Grounding Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.26
		25	$ 0.24
		100	$ 0.21
		250	$ 0.19
		500	$ 0.18
		2000	$ 0.16
		4000	$ 0.16
		6000	$ 0.21

Description

General part information

FSM1 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
