ERF5-020-07.0-L-DV-K-TR

Active

Samtec Inc.

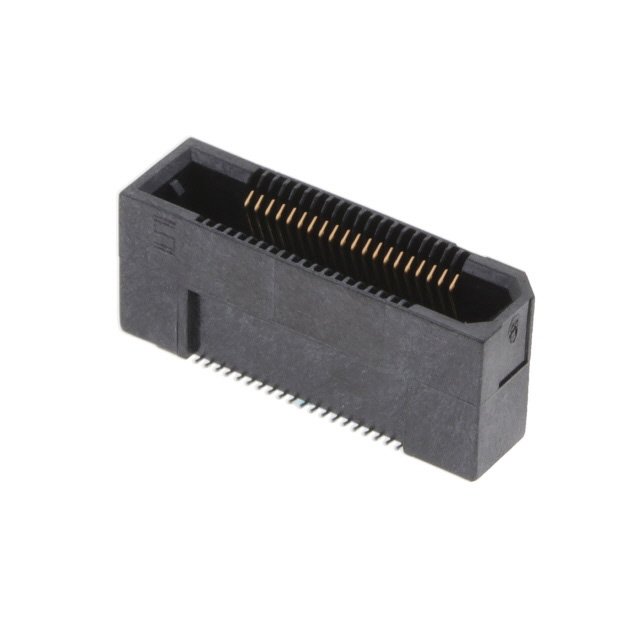

MEZZANINE CONNECTOR, HIGH-SPEED, RECEPTACLE, 0.5 MM, 2 ROWS, 40 CONTACTS, SURFACE MOUNT

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONNECTOR, HIGH-SPEED, RECEPTACLE, 0.5 MM, 2 ROWS, 40 CONTACTS, SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-020-07.0-L-DV-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Mated Stacking Heights	Height Above Board
Samtec Inc. ERF5-020-05.0-L-DV-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-07.0-L-DV-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	6.9 mm	0.272 in	Socket Center Strip Contacts	9 mm 11 mm 12 mm
Samtec Inc. ERF5-020-05.0-L-DV-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-05.0-L-DV-FL-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Lock Pick and Place Solder Retention	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-01-S-D-RA-TR	40	Gold	Surface Mount Right Angle	30 Áin	0.76 Ám	Board Guide	2	0.5 mm	0.02 in		0.187 in	Socket Center Strip Contacts		4.75 mm
Samtec Inc. ERF5-020-05.0-L-DV-FL-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Lock Solder Retention	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-07.0-S-DV-K-TR	40	Gold	Surface Mount	30 Áin	0.76 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	6.9 mm	0.272 in	Socket Center Strip Contacts	9 mm 11 mm 12 mm
