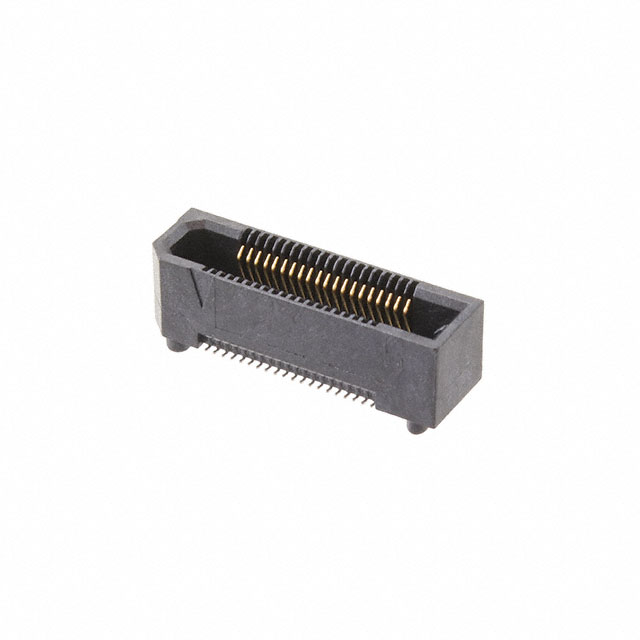

ERF5-020-05.0-L-DV-TR

Active

Samtec Inc.

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-020-05.0-L-DV-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	4.9 mm
Height Above Board [z]	0.193 in
Mated Stacking Heights	10 mm, 9 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Mated Stacking Heights	Height Above Board
Samtec Inc. ERF5-020-05.0-L-DV-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-07.0-L-DV-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	6.9 mm	0.272 in	Socket Center Strip Contacts	9 mm 11 mm 12 mm
Samtec Inc. ERF5-020-05.0-L-DV-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Guide	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-05.0-L-DV-FL-K-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Lock Pick and Place Solder Retention	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-01-S-D-RA-TR	40	Gold	Surface Mount Right Angle	30 Áin	0.76 Ám	Board Guide	2	0.5 mm	0.02 in		0.187 in	Socket Center Strip Contacts		4.75 mm
Samtec Inc. ERF5-020-05.0-L-DV-FL-TR	40	Gold	Surface Mount	10 Áin	0.25 Ám	Board Lock Solder Retention	2	0.5 mm	0.02 in	4.9 mm	0.193 in	Socket Center Strip Contacts	7 mm 9 mm 10 mm
Samtec Inc. ERF5-020-07.0-S-DV-K-TR	40	Gold	Surface Mount	30 Áin	0.76 Ám	Board Guide Pick and Place	2	0.5 mm	0.02 in	6.9 mm	0.272 in	Socket Center Strip Contacts	9 mm 11 mm 12 mm
