10142708-02200LF

Active

Amphenol ICC (FCI)

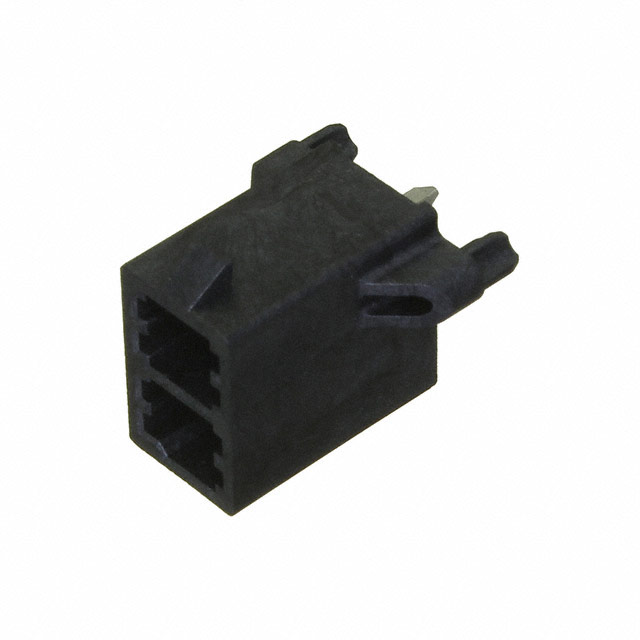

CONN HEADER VERT 2POS 5.7MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-1405 Other Related Document +2

10142708-02200LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 2POS 5.7MM

Deep-Dive with AI

DocumentsDatasheet gs-12-1405 Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10142708-02200LF

Applications	Telecommunications, General Purpose, Military, Medical
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.73 mm
Contact Length - Post	0.147 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Glow Wire Compliant, Board Guide
Insulation Color	Black
Insulation Height	0.583 in
Insulation Height	14.8 mm
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.224 in
Pitch - Mating	5.7 mm
Row Spacing - Mating	0.224 in
Row Spacing - Mating	5.7 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

10142708 Series

Part	Connector Type	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Color	Shrouding	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Finish - Post	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Applications	Number of Positions	Features	Fastening Type	Style	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Current Rating (Amps)	Contact Finish - Mating
Amphenol ICC (FCI) 10142708-02200LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	105 ░C	Male Pin	General Purpose Medical Military Telecommunications	2	Board Guide Glow Wire Compliant	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	2.54 çm	100 çin	600 VAC
Amphenol ICC (FCI) 10142708-08201LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	120 °C	Male Pin		8	Board Guide Glow Wire Compliant Pick and Place	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	0.076 µm	3 µin	600 VAC	Varies by Wire Gauge	Gold
Amphenol ICC (FCI) 10142708-022001LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	120 °C	Male Pin		2	Board Guide Glow Wire Compliant	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	0.076 µm	3 µin	600 VAC	Varies by Wire Gauge	Gold
Amphenol ICC (FCI) 10142708-06200LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	105 ░C	Male Pin	General Purpose Medical Military Telecommunications	6	Board Guide Glow Wire Compliant	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	2.54 çm	100 çin	600 VAC
Amphenol ICC (FCI) 10142708-04200LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	105 ░C	Male Pin	General Purpose Medical Military Telecommunications	4	Board Guide Glow Wire Compliant	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	2.54 çm	100 çin	600 VAC
Amphenol ICC (FCI) 10142708-042001LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	120 °C	Male Pin		4	Board Guide Glow Wire Compliant	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	0.076 µm	3 µin	600 VAC	Varies by Wire Gauge	Gold
Amphenol ICC (FCI) 10142708-04101LF	Header	Through Hole	All	0.583 in	14.8 mm	Black	Shrouded - 4 Wall	Copper Alloy	2.54 µm	100 µin	Liquid Crystal Polymer (LCP) Halogen Free	Square	0.224 in	5.7 mm	0.224 in	5.7 mm	UL94 V-0	Tin	2	Solder	-40 °C	120 °C	Male Pin		4	Board Guide Glow Wire Compliant Pick and Place	Locking Ramp	Board to Cable/Wire	3.73 mm	0.147 in	0.076 µm	3 µin	600 VAC	Varies by Wire Gauge	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.55
		10	$ 0.71
		25	$ 0.61
		40	$ 0.58
		80	$ 0.56
		230	$ 0.56

Description

General part information

10142708 Series

Connector Header Through Hole 2 position 0.224" (5.70mm)
